5500.2641.07

Overview

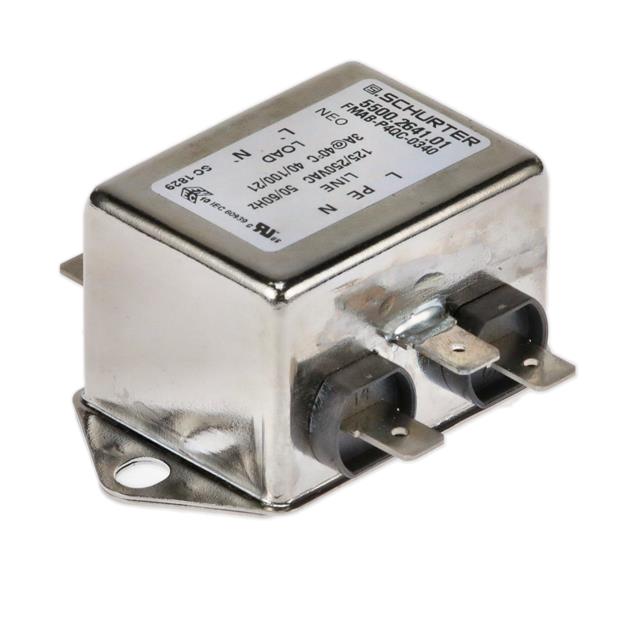

The SCHURTER 5500.2641.07 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at 50/60Hz with a rated current of 3A and voltage ratings of 125VAC and 250VAC. The unit features a single-stage configuration to reduce electromagnetic interference and conducted emissions. It complies with RoHS standards and is lead-free.

Feature Summary

• Single-stage filtering architecture for effective noise suppression
• Chassis mount design for secure installation
• Compliance with RoHS and lead-free manufacturing standards

Applications

• Medical equipment power supplies
• Industrial control systems
• General purpose electronic devices requiring EMI reduction

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact electrical characteristics and mechanical dimensions. Ensure the component meets the required safety certifications for the target application region. Cross-reference the part number with authorized distributors to confirm availability and authenticity before finalizing procurement decisions.

Selection Notes

Select this filter when a single-phase, 3A capacity solution is required for chassis-mounted applications. Consider the 125VAC and 250VAC voltage ratings to ensure compatibility with the system's power supply. Evaluate the single-stage topology against more complex multi-stage requirements based on specific attenuation needs and space constraints within the enclosure.

Part Context

This component belongs to the SCHURTER power line filter module series. These filters are engineered to mitigate conducted electromagnetic interference in AC power lines. The product line supports various current and voltage ratings, providing scalable protection solutions for sensitive electronic circuits across industrial and medical sectors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
