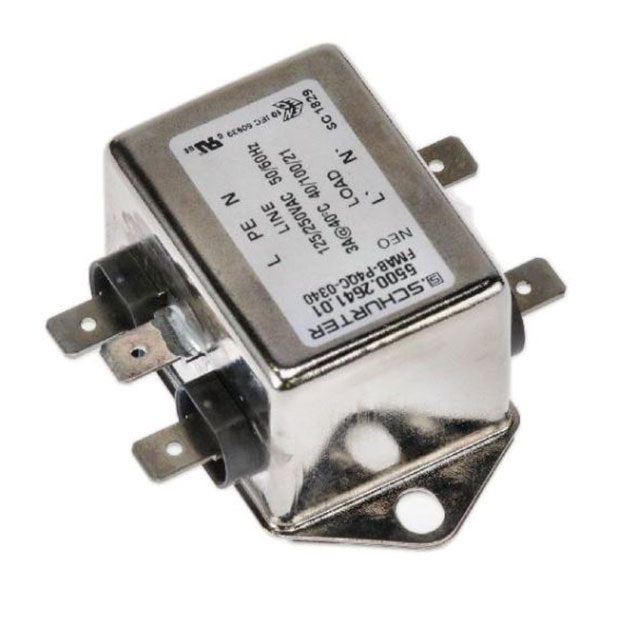

5500.2642.04

$12.76

Description：LINE FILTER 125V/250VAC 6A CHASS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box

SKU:48a562065ea2 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 6A CHASS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：6:00 AM
Frequency - Operating：50/60Hz
Applications：Medical
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2642.04

Overview

The SCHURTER Inc. 5500.2642.04 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a single-stage filtering configuration with quick-connect terminals. The component supports rated AC voltages of 125V and 250V at 50/60Hz frequencies, with a current rating of 6A. It operates within an ambient temperature range of -40°C to +100°C.

Feature Summary

Single-stage electromagnetic interference suppression
Chassis mount installation style
Quick connect terminal interface

Applications

Medical equipment
Industrial machinery
Electronic devices requiring EMI filtering

Procurement Notes

Verify the specific datasheet version for the 5500.2642.04 to confirm compliance details and mechanical dimensions. Ensure the application environment stays within the specified -40°C to +100°C operating temperature range. Confirm that the 6A current rating and 250VAC voltage rating match the system requirements before integration.

Selection Notes

Select this component when a single-phase, chassis-mountable filter is required for medical or industrial applications. It is suitable for systems needing 6A capacity with quick-connect termination. Consider the thermal limits and physical mounting constraints during design integration.

Part Context

This part belongs to Schurter's FMAB series of power line filters. These components are engineered for compact EMI suppression in single-phase AC circuits. The series offers various current ratings and mounting options to suit diverse electronic equipment needs.

Replacement Considerations

Check for direct substitutes within the same FMAB series with matching current and voltage ratings. Verify pinout compatibility and mounting hole patterns if replacing in existing enclosures.
