5500.2643.01

Overview

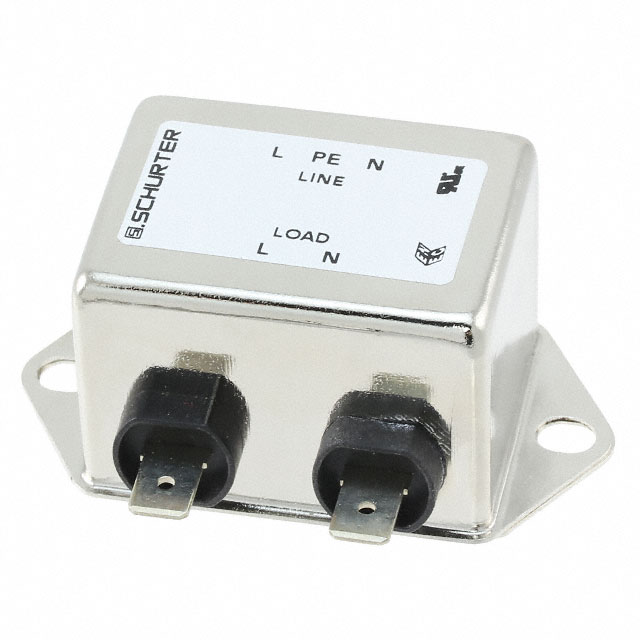

The SCHURTER Inc. 5500.2643.01 is a single-phase EMC/EMI power line filter from the FMAB NEO series, designed for chassis mounting. It features a 10 A current rating and operates at 125/250 VAC with 50/60 Hz frequency support. The unit utilizes quick-connect terminals for circuit integration and provides high symmetrical attenuation in a single-stage configuration.

Feature Summary

• Single-stage EMC/EMI filtering architecture
• High symmetrical attenuation performance
• Chassis mount installation style
• Quick-connect terminal interface

Applications

• Industrial equipment power input stages
• Medical device power supplies
• General purpose AC power distribution systems

Procurement Notes

Verify that the specific application requires a single-stage filter configuration rather than multi-stage alternatives. Confirm that chassis mounting hardware is compatible with the enclosure design. Ensure the operating environment temperature range aligns with the component specifications. Validate that the quick-connect terminal type matches the existing wiring harness or PCB layout requirements.

Selection Notes

Select this model when a compact, single-phase solution is required for noise suppression in AC power lines. The 10 A rating suits moderate load applications. Consider the chassis mount form factor if panel integration is preferred over PCB mounting. Verify voltage ratings match the local mains supply standards before implementation.

Part Context

This component belongs to the FMAB NEO series of power line filters manufactured by Schurter Inc. The series focuses on general-purpose EMI suppression for AC applications. The 5500.2643.01 variant specifically denotes the 10 A, single-phase, chassis-mount version within this product family.

Replacement Considerations

Consult official Schurter documentation for direct cross-references. Alternative models may exist within the same series with different current ratings or terminal types.
