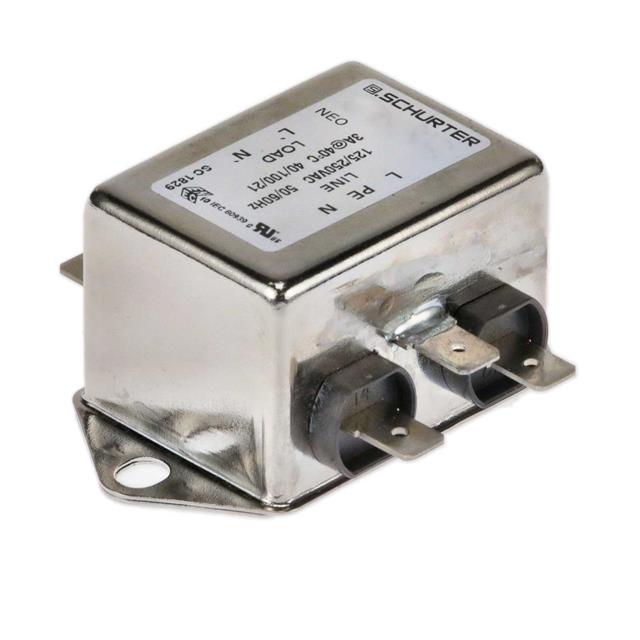

5500.2643.04

$18.17

Description：LINE FILTER 125V/250VAC 10A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box

SKU:6b3c44787bba Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 10A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：10:00 AM
Frequency - Operating：50/60Hz
Applications：Medical
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2643.04

Overview

The SCHURTER 5500.2643.04 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a single-stage filtering architecture with a rated current of 10 A and operates at voltages up to 250 VAC across 50/60 Hz frequencies. The unit utilizes quick connect terminals for circuit integration and provides attenuation in both differential and common mode configurations.

Feature Summary

Single-stage electromagnetic interference suppression
Chassis mount mechanical design
Quick connect terminal interface

Applications

Industrial equipment power conditioning
Medical device power supplies
Office automation hardware

Procurement Notes

Verify the specific voltage rating requirements against the datasheet specifications before procurement. Confirm that the quick connect terminal type matches the existing wiring harness. Ensure the chassis mounting dimensions align with the enclosure design constraints.

Selection Notes

Select this component when a single-stage solution meets the emission standards. Evaluate the thermal performance under continuous load conditions. Compare the physical footprint against available panel space. Verify compatibility with the target regulatory compliance framework.

Part Context

This model belongs to Schurter's modular power line filter series. It is engineered for integration into larger power distribution assemblies. The design supports standard industrial safety certifications.

Replacement Considerations

The 5500.2640.04 is a similar single-phase filter from the same manufacturer. Verify if the lower current rating of 1 A is sufficient for the application requirements before substitution.
