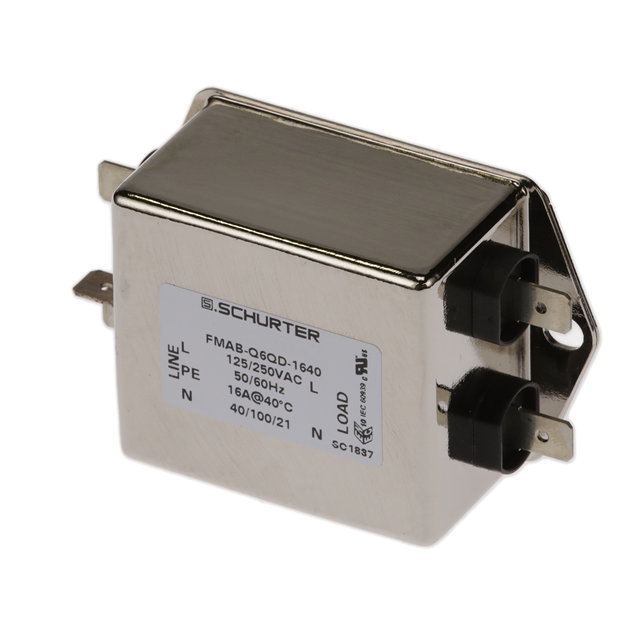

5500.2645.04

$13.89

Description：LINE FILTER 125V/250VAC 16A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box

SKU:9c74363abf9d Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 16A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：16 A
Frequency - Operating：50/60Hz
Applications：Medical
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2645.04

Overview

The SCHURTER Inc. 5500.2645.04 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It operates at rated AC voltages of 125VAC and 250VAC with a continuous current rating of 16A at 50/60Hz. This component belongs to the FMAB NEO series, featuring a compact single-stage design intended for efficient noise suppression in electronic equipment.

Feature Summary

Single-stage electromagnetic interference filtering architecture
Compact form factor suitable for space-constrained chassis installations
Quick-connect terminal interface for simplified assembly

Applications

Industrial control systems requiring EMI suppression
Medical equipment power input stages
Office automation machinery

Procurement Notes

Verify the specific voltage and current ratings against your system requirements before integration. Confirm that the chassis mount style aligns with your enclosure design. Ensure compatibility with the quick-connect terminals for proper electrical connection. Check for any recent product change notifications or environmental compliance updates from the manufacturer.

Selection Notes

Select this model when a single-phase, 16A rated filter is required for chassis mounting. Consider the FMAB NEO series characteristics for applications needing compact EMI solutions. Evaluate the available voltage ratings (125VAC/250VAC) to match your local power distribution standards. Verify that the single-stage performance meets your specific emission reduction targets.

Part Context

This component is part of Schurter's FMAB NEO series of power line filters. The series is known for high-performance filtering in a small footprint. The 5500.2645.04 specifically denotes the 16A variant within this family, offering standardized mounting and connection options for industrial and commercial applications.

Replacement Considerations

Consult official Schurter documentation for direct cross-references. Ensure any substitute maintains the 16A current rating and 250VAC voltage capability. Verify identical mounting dimensions and terminal types to avoid mechanical redesign.
