Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 30A CHAS
- Series：FMAB NEO
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：30 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M4)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

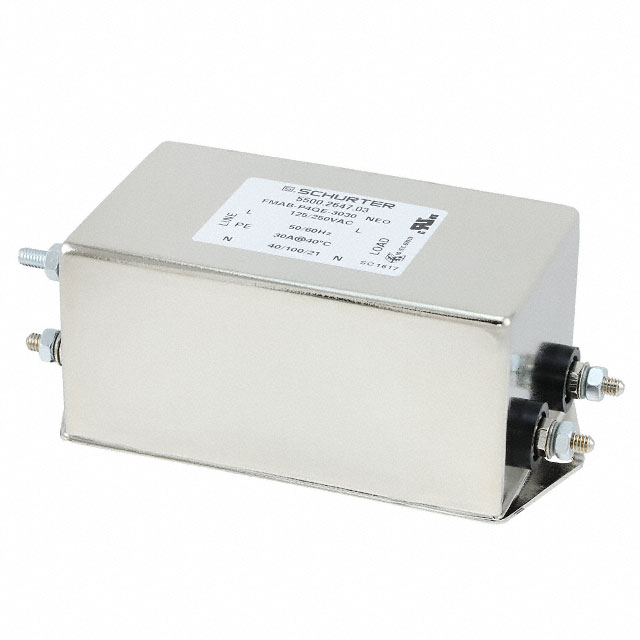

The SCHURTER 5500.2647.03 is a single-phase, single-stage EMC/EMI power line filter module designed for chassis mounting. It features a threaded post connection (M4) and supports an operating current of 30 A at a rated voltage of 250 VAC for 50/60 Hz applications. The unit weighs 448 g and provides high attenuation capabilities with options for high symmetrical noise attenuation, standard symmetrical noise attenuation, and excellent symmetrical attenuation.
Feature Summary
- Single-stage AC filter design for effective interference suppression
- Chassis mount configuration with M4 threaded post connections
- High symmetrical noise attenuation performance
Applications
- Industrial equipment power distribution
- Medical device power supplies
- General electronic equipment requiring EMI filtering
Procurement Notes
Verify the specific attenuation variant required, as the series offers high, standard, and excellent symmetrical noise attenuation options. Confirm that the M4 threaded post interface matches the installation hardware. Ensure the 30 A current rating and 250 VAC voltage specifications align with the system's electrical requirements before procurement.
Selection Notes
Select this component when a robust, single-phase solution is needed for high-current applications up to 30 A. The chassis-mount form factor suits panel installations where space efficiency and secure mechanical attachment are priorities. Evaluate the specific attenuation needs to choose between the available symmetrical noise attenuation levels within the FMAB NEO series.
Part Context
This part belongs to the SCHURTER FMAB NEO series of AC filters, which are engineered for high symmetrical attenuation. The series provides multiple designs to address various electromagnetic compatibility challenges in single-phase power lines, ensuring reliable operation in demanding industrial and commercial environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
