5500.2647.06

Overview

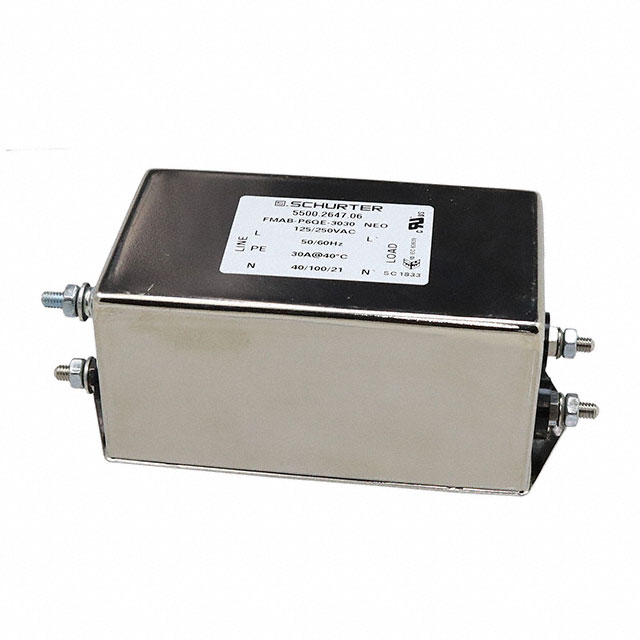

The Schurter 5500.2647.06 is a single-phase, single-stage power line filter designed for chassis mounting. It supports a maximum current of 30 A at voltage ratings of 125 VAC and 250 VAC, operating at frequencies of 50 Hz and 60 Hz. The component utilizes threaded post terminals (M4) for secure electrical connections. It features a leakage current of 500 μA and complies with UL, CSA, VDE, and EN standards.

Feature Summary

• Single-stage electromagnetic interference suppression
• Chassis mount installation with M4 threaded posts
• Compliance with international safety certifications

Applications

• Industrial machinery power input stages
• Medical equipment EMI filtering
• Commercial IT infrastructure power conditioning

Procurement Notes

Verify the specific terminal configuration and mounting hole dimensions against the mechanical drawing before integration. Confirm that the 30 A current rating aligns with the system's peak load requirements. Ensure the chassis material allows for proper grounding connection to the filter's shield. Check for any specific environmental constraints regarding the operating temperature range.

Selection Notes

Select this model when high current capacity is required in a compact single-stage form factor. The M4 threaded post interface offers robust mechanical stability compared to quick-connect alternatives. Consider the 500 μA leakage current limit if strict isolation standards apply. Compare attenuation characteristics against multi-stage options if higher noise reduction is necessary.

Part Context

This component belongs to the FMAB series of power line filters from Schurter. The series is characterized by high current handling capabilities and standardized mounting interfaces. It serves as a critical component for ensuring electromagnetic compatibility in single-phase AC power systems requiring significant current throughput.

Replacement Considerations

Direct substitutes include other Schurter FMAB series models with similar current ratings. Verify terminal type compatibility when considering alternative brands. Ensure replacement parts meet the same UL, CSA, VDE, and EN certification requirements for regulatory compliance.
