Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 30A CHAS
- Series：FMAB NEO
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：30 A
- Frequency - Operating：50/60Hz
- Applications：Medical
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M4)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

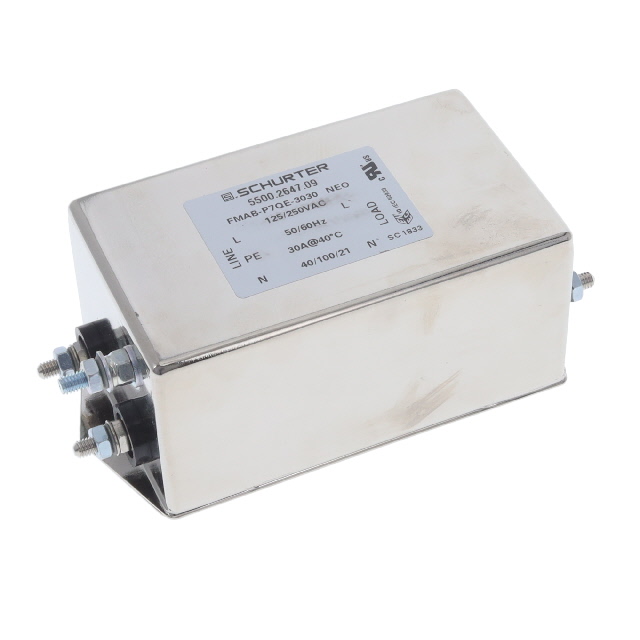

The SCHURTER Inc. 5500.2647.09 is a single-phase EMC/EMI line filter module designed for medical applications. It features a 30 A current rating and operates at voltage ratings of 125 VAC or 250 VAC within a 50/60 Hz frequency range. The unit utilizes a single-stage filtering architecture with high symmetrical noise attenuation. Installation is facilitated via threaded posts (M4) for chassis mounting. The component is certified for medical use and complies with RoHS3 specifications.
Feature Summary
- Single-stage design providing high symmetrical noise attenuation
- Certified specifically for medical equipment applications
- Chassis mount configuration using M4 threaded posts
Applications
- Medical electronic devices requiring EMI suppression
- Single-phase AC power distribution systems
- Chassis-mounted power entry modules
Procurement Notes
Verify the specific voltage rating requirement, as the component supports both 125 VAC and 250 VAC operations. Confirm that the M4 threaded post mounting style aligns with the target chassis design. Ensure the application strictly adheres to medical certification standards required for this part number. Check for any specific lead time constraints associated with medical-grade inventory.
Selection Notes
Select this model when high symmetrical attenuation is critical for single-phase medical equipment. The 30 A rating suits high-power medical devices. Consider the chassis-mount form factor if panel integration is preferred over PCB mounting. Verify compatibility with existing M4 mounting hardware before procurement.
Part Context
This component belongs to the FMAB NEO series from SCHURTER Inc., which focuses on AC filters offering high performance in compact designs. The series is engineered to meet stringent electromagnetic interference requirements for sensitive electronic environments, particularly within the healthcare sector where reliability and safety are paramount.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official manufacturer channels for cross-reference data.
