5500.2648.06

$84.65

Description：LINE FILTER 125V/250VAC 60A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box

SKU:927f59fb4974 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 60A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：60 A
Frequency - Operating：50/60Hz
Applications：Medical
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (M6)
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2648.06

Overview

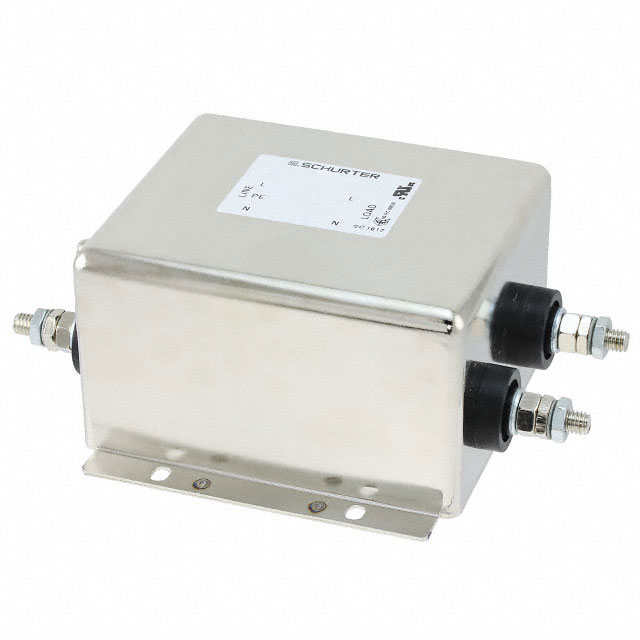

The SCHURTER Inc. 5500.2648.06 is a single-phase EMC/EMI line filter module designed for chassis mounting. It features a threaded post (M6) connection interface and operates within a frequency range of 50 to 60Hz. The component supports rated AC voltages of 125VAC and 250VAC, with a maximum current rating of 60A. It provides high symmetrical noise attenuation in a single-stage configuration. The unit is rated for an operating temperature range of -25°C to 100°C and includes safety approvals from cUL, ENEC, and UL.

Feature Summary

Single-stage design delivering high symmetrical noise attenuation for effective EMI suppression
Chassis-mount construction utilizing M6 threaded post connections for secure installation
Compliance with IEC and UL safety standards ensuring reliable operation in regulated environments

Applications

Medical equipment power supplies
Industrial power distribution systems
Battery-operated systems requiring noise filtering

Procurement Notes

Verify the specific voltage and current ratings required for your application against the datasheet specifications. Confirm that the M6 threaded post mounting style matches your chassis design. Ensure compatibility with 50/60Hz input frequencies. Check for current availability as electronic components may experience supply fluctuations.

Selection Notes

Select this model when high symmetrical attenuation is critical for sensitive electronics. The 60A capacity suits high-power industrial or medical applications. Verify that the chassis-mount form factor fits the enclosure constraints. Consider the wide operating temperature range for demanding environmental conditions.

Part Context

This component belongs to the SCHURTER FMAB NEO series of AC filters. The series is characterized by high-performance microcontroller-compatible filtering solutions. It represents a specialized category of power line protection modules focused on electromagnetic interference reduction for professional equipment.
