5500.2648.09

$95.17

Description：LINE FILTER 125V/250VAC 60A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box

SKU:f9d6d79300b9 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 60A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：60 A
Frequency - Operating：50/60Hz
Applications：Medical
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (M6)
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2648.09

Overview

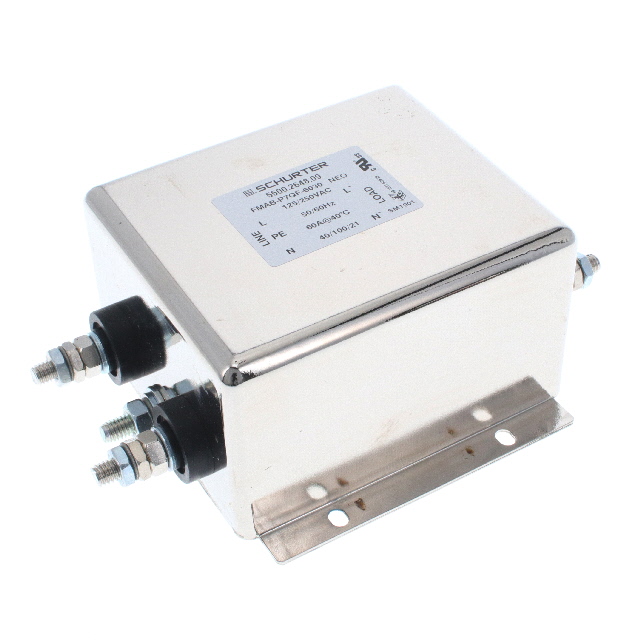

The SCHURTER Inc. 5500.2648.09 is a single-phase EMC/EMI power line filter module designed for high-current applications. It features a rated current of 60 A and operates at voltages up to 250 VAC at 50/60 Hz. The unit utilizes a single-stage configuration with an M6 threaded post mounting interface. This component is engineered for chassis installation and provides noise suppression in demanding electrical environments.

Feature Summary

Single-stage electromagnetic interference filtering architecture
High current capacity rated at 60 amperes
Chassis-mount design utilizing M6 threaded post connections

Applications

Medical equipment power systems
Industrial machinery control panels
Power distribution architectures

Procurement Notes

Verify the specific voltage rating and current capacity requirements against the application load before procurement. Confirm that the M6 threaded post mounting style matches the available chassis space and mechanical constraints. Ensure compatibility with the operating frequency range of 50 or 60 Hz. Cross-reference the datasheet for precise dimensional tolerances to guarantee proper fitment within the enclosure.

Selection Notes

Select this component when high current handling is required alongside effective EMI suppression in a single-phase system. The M6 threaded post interface offers robust mechanical stability for heavy-duty installations. Consider the single-stage topology for cost-effective noise reduction where extreme attenuation is not critical. Evaluate the physical dimensions to ensure the chassis mount fits the designated panel opening.

Part Context

This part belongs to Schurter's power line filter module series, which focuses on protecting sensitive electronics from line noise. These modules are typically used in industrial and medical settings where reliable power quality is essential. The 5500 series generally supports high-current loads, distinguishing it from lower-amperage PCB-mounted filters.
