5500.2651.04

Overview

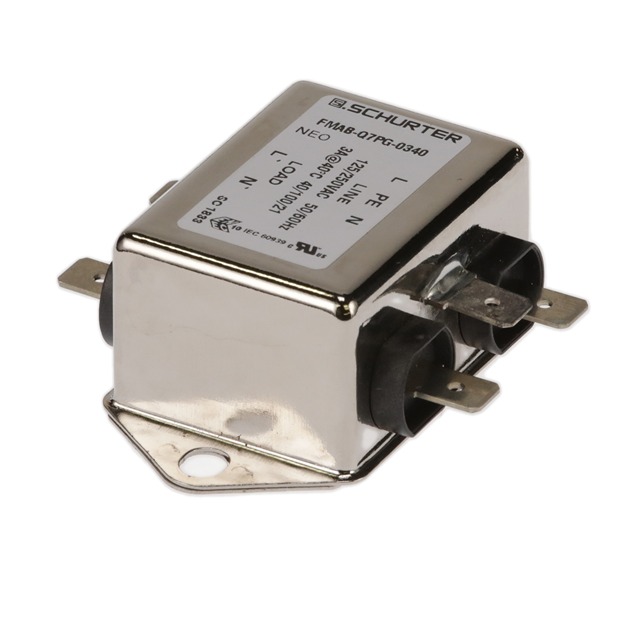

The SCHURTER Inc. 5500.2651.04 is a single-stage, single-phase power line filter designed for chassis mounting. It provides electromagnetic interference (EMI) suppression with a rated current of 3A and operates at voltages of 125VAC or 250VAC. The unit features a compact design suitable for integration into various electronic equipment requiring noise reduction.

Feature Summary

• Single-stage EMI filtering architecture
• Chassis mount installation style
• Compact footprint design

Applications

• Medical equipment
• Industrial control systems
• Information technology hardware

Procurement Notes

Verify the specific voltage rating configuration required for your application, as this series supports both 125VAC and 250VAC variants. Confirm that the chassis mounting dimensions align with your enclosure specifications. Ensure compliance with relevant regional safety standards such as cULus, ENEC, and VDE before finalizing procurement.

Selection Notes

Select this component when a single-stage filter solution is sufficient for your EMI requirements. Consider the 3A current rating to ensure it meets the maximum load of your device. Evaluate the physical space constraints in your chassis to accommodate the module's dimensions and mounting hardware.

Part Context

This part belongs to Schurter's 5500 series of power line filters, which are engineered for general-purpose EMI suppression. The series offers various current ratings and configurations to suit different industrial and commercial applications, emphasizing reliability and regulatory compliance.

Replacement Considerations

Direct substitutes include other single-stage, 3A, chassis-mount filters from Schurter within the same series. Verify that any replacement maintains identical electrical ratings and mechanical mounting specifications to ensure seamless integration.
