5500.2653.07

Overview

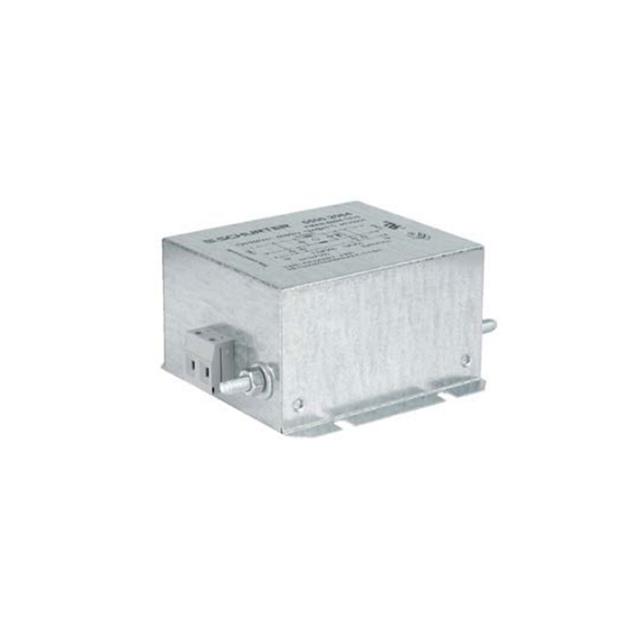

The SCHURTER Inc. 5500.2653.07 is a single-stage power line filter module designed for chassis mounting. It supports AC voltages of 125VAC and 250VAC with a rated current of 10A. The component belongs to the FMAB product range and is certified for medical applications. It provides high symmetrical attenuation for noise suppression in single-phase circuits.

Feature Summary

• Medical grade certification for healthcare equipment
• Single-stage filtering architecture
• Chassis mount installation style

Applications

• Medical electronic devices
• Industrial control systems
• Power distribution units

Procurement Notes

Verify the specific voltage rating (125VAC or 250VAC) required for your application against the datasheet specifications. Confirm that the chassis mounting dimensions align with your enclosure design. Ensure the 10A current rating meets the load requirements. Check for any specific medical compliance documentation if used in regulated environments.

Selection Notes

Select this component when a compact, single-stage EMI filter is needed for medical or industrial chassis-mounted applications. It is suitable for single-phase AC circuits requiring 10A capacity. Consider the physical size constraints and the need for high symmetrical attenuation before choosing this model over multi-stage alternatives.

Part Context

This part is part of the SCHURTER FMAB series of power line filters. These modules are engineered for efficient noise reduction in sensitive electronic equipment. The series offers various configurations to meet different regulatory and performance standards for global markets.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
