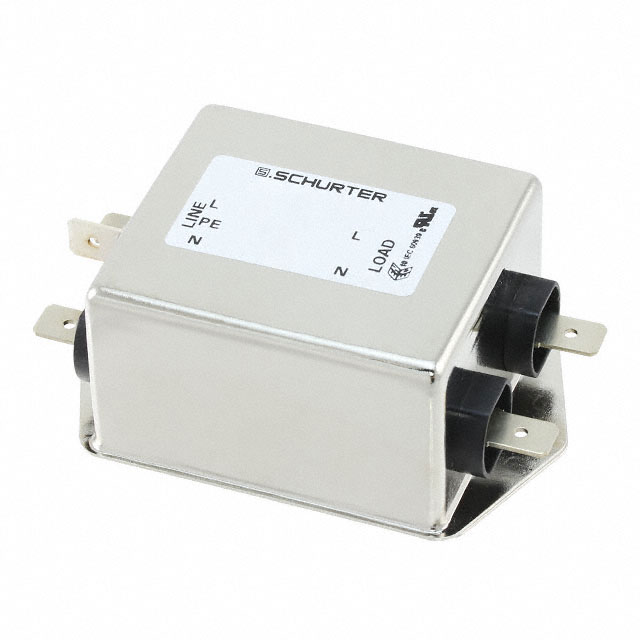

5500.2655.01

$18.98

Description：LINE FILTER 125V/250VAC 16A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box

SKU:04f222637ef4 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 16A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：16 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2655.01

Overview

The Schurter 5500.2655.01 is a single-phase power line filter from the FMAB NEO series, rated for 16 A at 250 V AC and 50/60 Hz. It features quick connect terminals and chassis mounting. Key electrical parameters include a maximum leakage current of 500 μA, DC resistance of 12 mΩ, and power loss of 0.86 W. The unit operates within a temperature range of -40°C to 100°C. Physical dimensions are 64 mm in length, 35.5 mm in depth, and 24.8 mm in height.

Feature Summary

Single-stage EMI/RFI attenuation for single-phase applications
Chassis mount design with quick-connect termination
Low leakage current specification suitable for sensitive equipment

Applications

Medical device power input filtering
Industrial control system noise suppression
Office automation equipment EMC compliance

Procurement Notes

Verify the specific part number suffix against official Schurter documentation to confirm terminal configuration and certification status. Ensure the operating environment temperature remains within the specified -40°C to 100°C range. Confirm that the required current rating does not exceed 16 A under peak load conditions to maintain performance integrity.

Selection Notes

Select this component when a single-stage filter is sufficient for the application's EMI requirements. The 16 A rating supports high-power single-phase loads. Verify that the chassis mounting style and quick-connect terminals align with the system's mechanical and wiring constraints. Consider the low leakage current if safety isolation is critical.

Part Context

This component belongs to the FMAB NEO series of power line filters manufactured by Schurter Inc. The series is designed for general industrial and medical applications requiring reliable EMI suppression. The model number 5500.2655.01 specifically denotes the 16 A variant within this product family.

Replacement Considerations

Consult Schurter technical support for verified cross-references. No direct substitute part numbers are publicly confirmed in the provided documentation.
