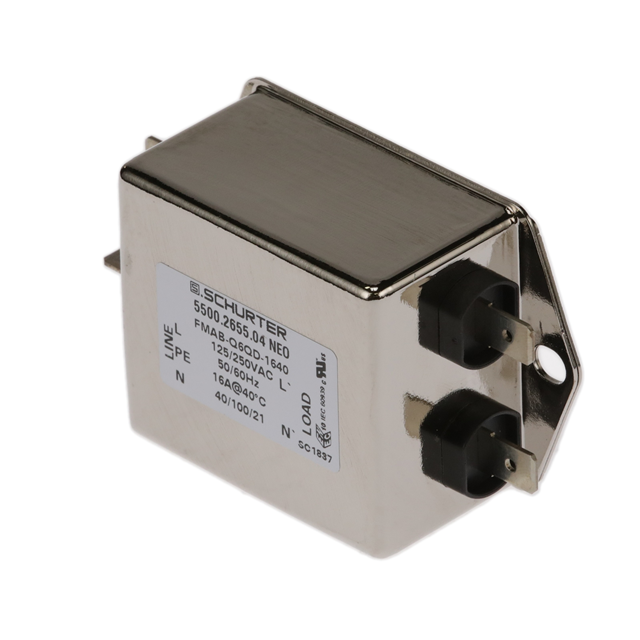

- Description：LINE FILTER 125V/250VAC 16A CHAS
- Series：FMAB NEO
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：Medical
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview
The SCHURTER Inc. model 5500.2655.04 is a single-phase, single-stage power line filter designed for electromagnetic compatibility applications. It operates at a rated voltage of 250VAC and supports a current rating of 16A at 50/60Hz frequencies. The component utilizes quick connect terminals for circuit integration and is constructed to meet RoHS3 compliance standards.
Feature Summary
- Provides single-stage EMI/RFI attenuation for single-phase AC power lines
- Features quick connect terminal configuration for efficient PCB or chassis mounting
- Complies with international safety and environmental regulations including RoHS3
Applications
- Industrial control systems requiring noise suppression
- Medical equipment power inputs
- Information technology hardware filtering
Procurement Notes
Verify the specific datasheet revision before procurement to ensure compatibility with current regulatory requirements. Confirm that the quick connect terminal pitch matches the target circuit board layout. Check for any recent product change notifications regarding material composition or manufacturing location changes.
Selection Notes
Select this component when a 16A capacity is required for single-phase filtering. Ensure the application environment does not exceed the rated voltage of 250VAC. Consider the physical dimensions and mounting style if space constraints are critical within the enclosure design.
Part Context
This part belongs to Schurter's 5500 series of power line filters. These components are engineered for general-purpose EMC protection in electronic devices. The series offers various current ratings and terminal configurations to suit different power distribution needs across industrial and commercial sectors.
Replacement Considerations
Direct substitutes include models 5500.2645.04 and 5500.2656.04 from the same manufacturer. Verify that alternative parts match the 16A current rating and 250VAC voltage specification. Ensure the replacement maintains the single-stage filter topology and quick connect interface.
