5500.2655.07

$15.39

Description：LINE FILTER 125V/250VAC 16A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box

SKU:147eed8d1a44 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 16A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：16 A
Frequency - Operating：50/60Hz
Applications：Medical
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2655.07

Overview

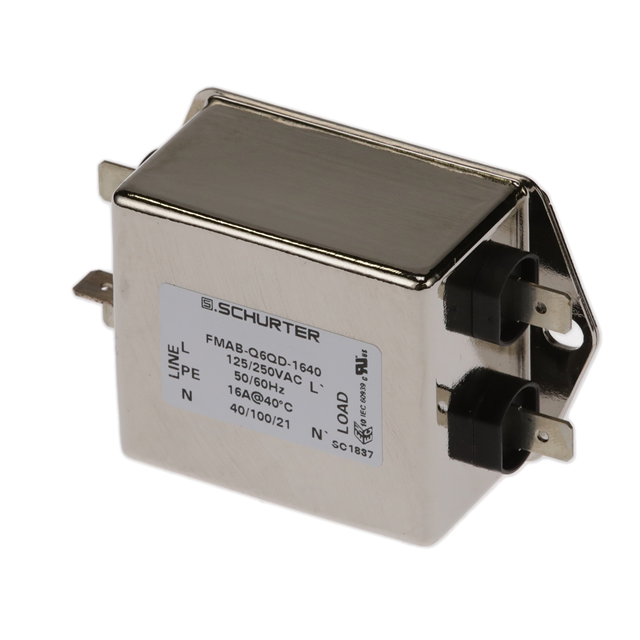

The SCHURTER Inc. 5500.2655.07 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at rated voltages of 125VAC and 250VAC with a frequency range of 50/60Hz. The component supports a maximum current of 16A and utilizes quick-connect terminals for circuit integration. This single-stage filter provides electromagnetic interference suppression for electronic equipment requiring reliable power line conditioning.

Feature Summary

Single-phase EMI/EMC filtering capability
Chassis mount construction for secure installation
Quick connect terminal interface

Applications

Industrial equipment power supplies
Medical device power systems
Electronic test and measurement instruments

Procurement Notes

Verify the exact part number against official Schurter documentation to confirm specifications. Ensure compatibility with existing chassis mounting holes and terminal configurations. Check for RoHS compliance status if required by project regulations. Confirm lead times and availability through authorized distributors as stock levels fluctuate.

Selection Notes

Select this component when single-phase noise suppression is required for 16A circuits. Verify voltage ratings match the system's 125V or 250VAC operation. Ensure physical dimensions fit the available chassis space. Confirm that quick-connect terminals align with the PCB or wire harness design.

Part Context

This component belongs to Schurter's line filter portfolio, which includes various EMC solutions for different current and voltage requirements. It is distinct from their fuse and connector products, focusing specifically on signal integrity and noise reduction in power lines.
