Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 30A CHAS
- Series：FMAB NEO
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：30 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M6)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

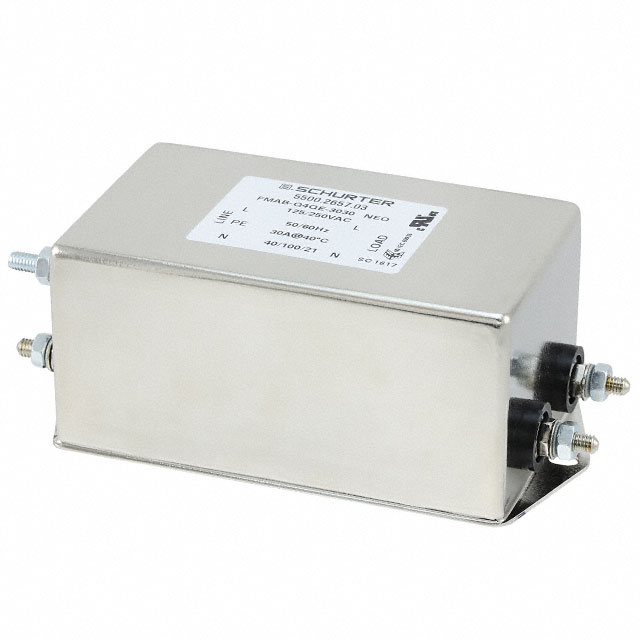

The SCHURTER Inc. 5500.2657.03 is a single-phase power line filter belonging to the FMAB NEO Series. It provides EMI/RFI suppression for electrical circuits with a rated voltage of 250 VAC and a continuous current capacity of 30 A at 50/60 Hz. The unit features a one-stage filtering design intended for chassis mounting via threaded posts (M4). This component is designed for industrial applications requiring reliable noise reduction in AC power lines.
Feature Summary
- Single-stage electromagnetic interference suppression
- Chassis mount construction with threaded post interface
- Industrial-grade general purpose filtering
Applications
- Industrial equipment power input stages
- Medical device power supplies
- General purpose electronic systems requiring EMI reduction
Procurement Notes
Verify the specific suffix code against official Schurter documentation to confirm mechanical dimensions and terminal configurations. Ensure the M4 threaded post mounting style matches the system chassis requirements. Confirm that the 30A rating and 250VAC specification align with the target circuit parameters before procurement.
Selection Notes
Select this component when a single-stage, high-current (30A) solution is required for 250VAC single-phase lines. The chassis mount form factor necessitates available panel space and access for M4 fasteners. Consider thermal management capabilities if operating near maximum current ratings in enclosed environments.
Part Context
This part belongs to the FMAB NEO Series of power line filters from Schurter. The series offers various current ratings and mounting options for AC power line protection. The 5500.2657.03 specifically addresses high-current industrial needs with a standardized chassis mount footprint.
Replacement Considerations
Consult official Schurter substitution guides for equivalent models within the FMAB series or alternative manufacturers offering comparable 30A single-stage chassis-mount filters. Verify that any substitute maintains the same M4 mounting thread and voltage/current ratings.
