5500.2657.06

Overview

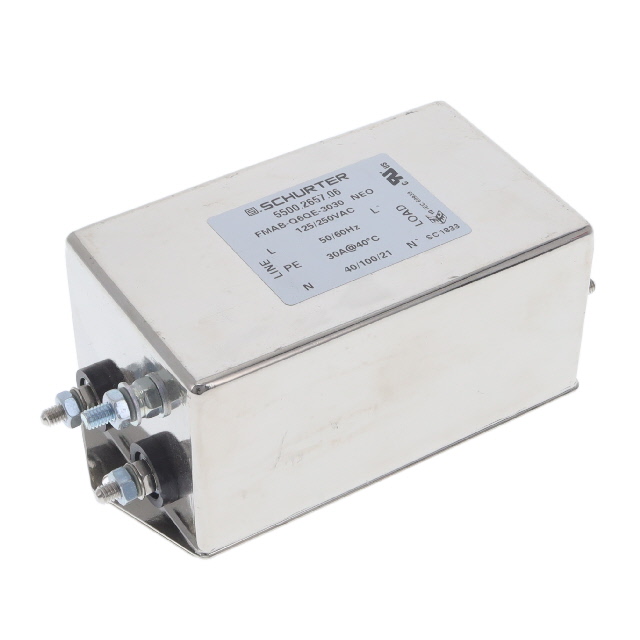

The Schurter 5500.2657.06 is a single-phase, one-stage power line filter designed for chassis mounting. It supports a maximum current of 30 A at voltage ratings of 125 VAC and 250 VAC, operating at 50 Hz or 60 Hz. The unit features threaded post terminals (M4) for secure connection. It is engineered to suppress electromagnetic interference in AC power circuits, ensuring compliance with EMC standards for connected equipment.

Feature Summary

• Single-stage EMI/EMC filtering architecture
• Chassis mount installation style
• Threaded post terminal connections

Applications

• Industrial machinery power supplies
• Medical equipment input stages
• Commercial IT infrastructure

Procurement Notes

Verify the specific datasheet revision for detailed attenuation curves and derating information. Confirm mechanical dimensions against the enclosure design to ensure proper clearance. Check regulatory certifications required for the target market before finalizing procurement specifications.

Selection Notes

Select this component when a single-stage filter meets the noise suppression requirements for 30 A applications. Ensure the mounting space accommodates the chassis mount form factor. Verify that the M4 threaded posts align with the available PCB or busbar termination points in the system design.

Part Context

This part belongs to the Schurter power line filter portfolio, which provides EMI suppression solutions for various industrial and commercial applications. The series offers different current ratings and stage configurations to suit diverse power distribution needs.

Replacement Considerations

Cross-reference with other Schurter models offering similar 30 A ratings and single-stage topology. Verify terminal type compatibility and physical footprint dimensions before substituting.
