5500.2657.09

Overview

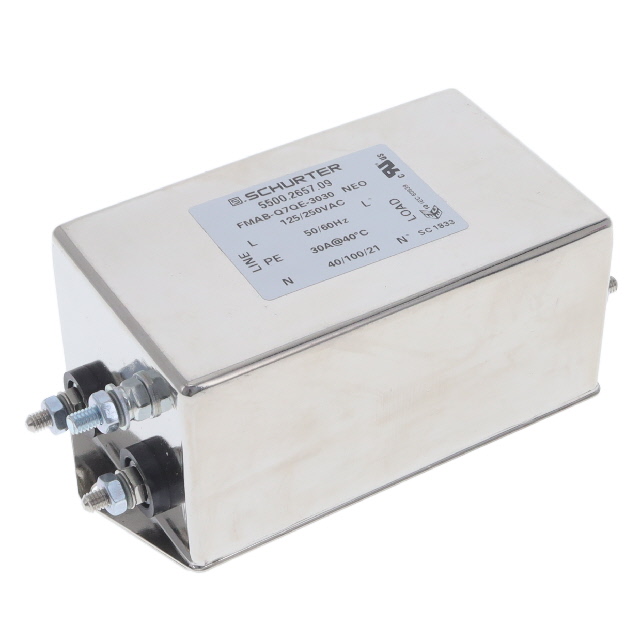

The SCHURTER Inc. 5500.2657.09 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a threaded post (M4) termination style and operates at rated voltages of 125VAC and 250VAC with a current capacity of 30A. The unit functions as a single-stage filter suitable for 50/60Hz applications, providing noise suppression in power distribution systems.

Feature Summary

• Single-phase electromagnetic compatibility filtering
• Chassis mount construction with M4 threaded posts
• Dual voltage rating capability

Applications

• Industrial equipment power supplies
• Medical device power inputs
• General purpose AC power distribution

Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm exact electrical characteristics and certification marks. Ensure the M4 threaded post termination matches the panel hole specifications. Confirm RoHS compliance status if required by project regulations before finalizing procurement.

Selection Notes

Select this component when a single-stage solution is sufficient for EMI reduction requirements. The chassis mount form factor requires adequate panel space and access for the threaded post connections. Verify that the 30A current rating accommodates the maximum load current including safety margins.

Part Context

This part belongs to the FMAB NEO series of power line filters from Schurter. The series offers various current ratings and configuration options for different noise attenuation needs. The 5500.2657.09 represents a standard high-current variant within this product family.

Replacement Considerations

Check for direct substitutes within the same FMAB NEO series with identical mounting dimensions and terminal types. Verify that any alternative part meets the same 30A rating and 250VAC specification. Ensure mechanical fit for the M4 threaded post installation.
