5500.2658.06

Overview

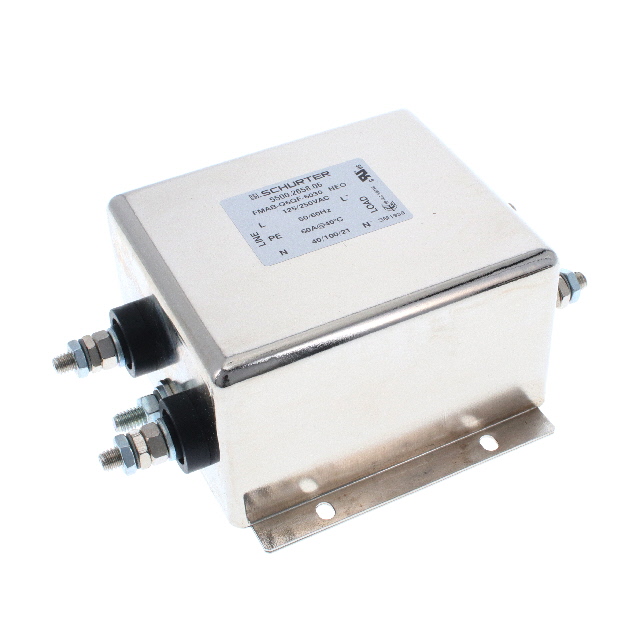

The Schurter 5500.2658.06 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated current of 60 A at voltages of 125 VAC and 250 VAC, operating at 50 Hz or 60 Hz frequencies. The unit utilizes a single-stage configuration with M6 threaded post terminals for secure connection. Key electrical parameters include a maximum leakage current of 500 μA and a resistance value of 1.2 mΩ. The component measures 130 mm in length, 75 mm in width, and 95 mm in height, weighing approximately 1.4 kg.

Feature Summary

• Single-stage EMI filtering architecture for effective noise suppression
• High-current capacity rated for 60 A continuous operation
• Dual voltage compatibility supporting both 125 VAC and 250 VAC systems
• Robust chassis mount design with M6 threaded post connections

Applications

• Industrial power converters
• Medical equipment power supplies
• Telecommunications infrastructure
• Automotive testing equipment

Procurement Notes

Verify the specific terminal configuration matches the M6 threaded post requirement before integration. Confirm that the 60 A current rating aligns with the system's peak load demands. Ensure chassis mounting holes correspond to the specified dimensions. Check for required certifications such as UL or VDE depending on regional compliance standards. Validate insulation and leakage current specifications against safety regulations.

Selection Notes

Select this model when high current handling is critical alongside compact single-stage filtering. Compare against multi-stage alternatives if higher attenuation is needed without increasing size. Consider the thermal performance at full load conditions. Evaluate the mechanical stability provided by the threaded post interface versus screw terminals. Assess space constraints relative to the 130x75x95 mm footprint.

Part Context

This component belongs to Schurter's power line filter portfolio, specifically engineered for demanding industrial and medical applications. It represents a solution for managing electromagnetic interference in high-power single-phase circuits. The design prioritizes durability and ease of installation through its robust mounting style.

Replacement Considerations

Direct substitutes must match the 60 A rating, 125/250 VAC voltage range, and M6 threaded post termination. Verify identical physical dimensions for chassis compatibility. Ensure equivalent leakage current limits and certification approvals are maintained for regulatory compliance.
