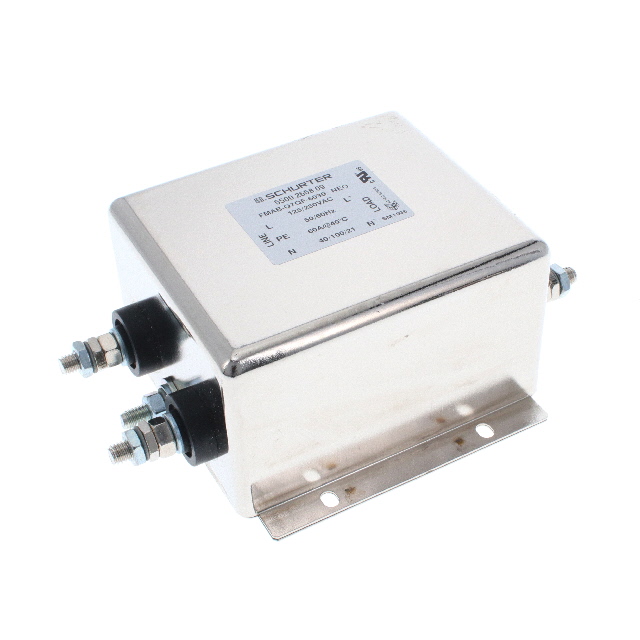

5500.2658.09

$94.08

Description：LINE FILTER 125V/250VAC 60A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box

SKU:4fbddec19e37 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125V/250VAC 60A CHAS
Series：FMAB NEO
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：125V, 250V
Current：60 A
Frequency - Operating：50/60Hz
Applications：Medical
Approval Agency：cURus, ENEC, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (M6)
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5500.2658.09

Overview

The SCHURTER Inc. 5500.2658.09 is a single-phase power line filter belonging to the FMAB NEO series, designed for chassis mounting. It provides electromagnetic interference (EMI) suppression with a rated current of 60 A and operates at voltages up to 250 VAC. The component features a single-stage configuration and utilizes threaded post connections (M6). Certified for medical applications, it ensures clean and safe power supply in demanding environments.

Feature Summary

Single-stage EMI/EMC filtering for single-phase AC power lines
Chassis mount design with M6 threaded post terminals
Medical grade certification for healthcare equipment safety

Applications

Medical electronic equipment requiring certified power filtration
Industrial machinery needing single-phase noise suppression
Power distribution systems integrating chassis-mounted filters

Procurement Notes

Verify the specific voltage rating (125VAC vs 250VAC) required for your application against the datasheet specifications. Confirm that the M6 threaded post terminal style matches your assembly hardware. Ensure the 60A current rating exceeds your system's maximum load to maintain safety margins and compliance with medical standards.

Selection Notes

Select this component when a single-stage, high-current (60A) solution is needed for single-phase applications. The chassis mount form factor suits panel integration. Verify compatibility with existing M6 mounting hardware and ensure the medical certification aligns with regulatory requirements for the target end-product.

Part Context

This part belongs to the FMAB NEO series from SCHURTER Inc., a manufacturer specializing in circuit protection and input systems. The series focuses on providing reliable EMC solutions for industrial and medical sectors, emphasizing robust construction and compliance with international safety standards for critical infrastructure.
