5532600-2

Edgeboard Connectors Overview

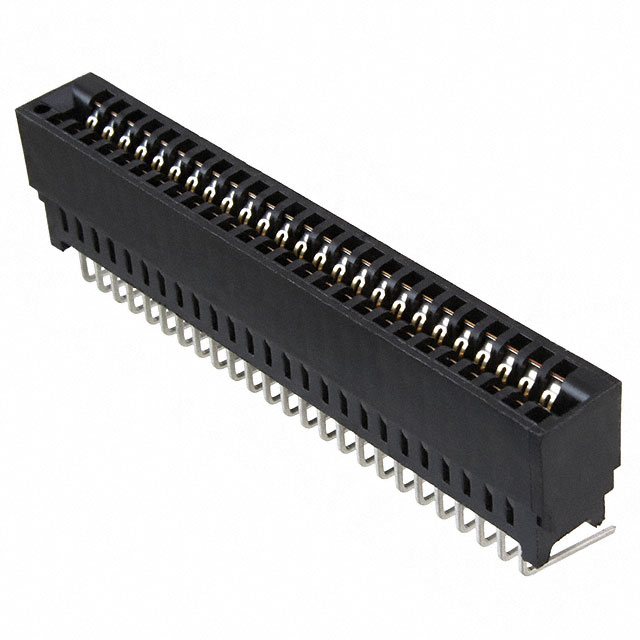

The TE Connectivity AMP Connectors model 5532600-2 is a card edge power connector designed for board-to-board applications. It features a dual-edge female configuration with 50 positions, providing dedicated power connections without signal pins. The connector utilizes a 2.54 mm (.1 in) centerline pitch and employs gold and tin contact plating on a polyester housing. Rated for UL94 V-0 flammability, it supports both power and signal transmission within its 50 power position layout.

Edgeboard Connectors Feature Summary

• Dual-edge female design for secure board-to-board mating
• Dedicated power position layout for high-current applications
• Gold and tin contact plating for reliable conductivity
• Polyester housing material ensuring structural stability

Edgeboard Connectors Applications

• Board-to-board interconnects requiring power distribution
• Industrial equipment internal power routing
• Consumer electronics assembly with card edge modules
• Telecommunications hardware power supply connections

Edgeboard Connectors Procurement Notes

Verify the specific contact plating composition (gold/tin) and housing material against the official datasheet to ensure compatibility with your manufacturing process. Confirm that the 50-position power-only configuration meets your circuit requirements, as this part lacks signal positions. Check for any recent product change notifications or end-of-life notices from TE Connectivity before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector is required for power-intensive board-to-board links. The 2.54 mm pitch suits standard industrial spacing needs. Ensure the application environment does not exceed the thermal limits of the polyester housing. Consider the UL94 V-0 rating if fire safety compliance is mandatory for the target device assembly.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP Connectors line, specializing in robust interconnect solutions. The 5532600-2 specifically addresses the need for reliable power delivery in compact electronic assemblies. Its design focuses on durability and electrical performance within the card edge connector category, serving as a critical link between parent and daughter boards.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must consult TE Connectivity directly for cross-reference information or alternative components with similar pin counts and power specifications.
