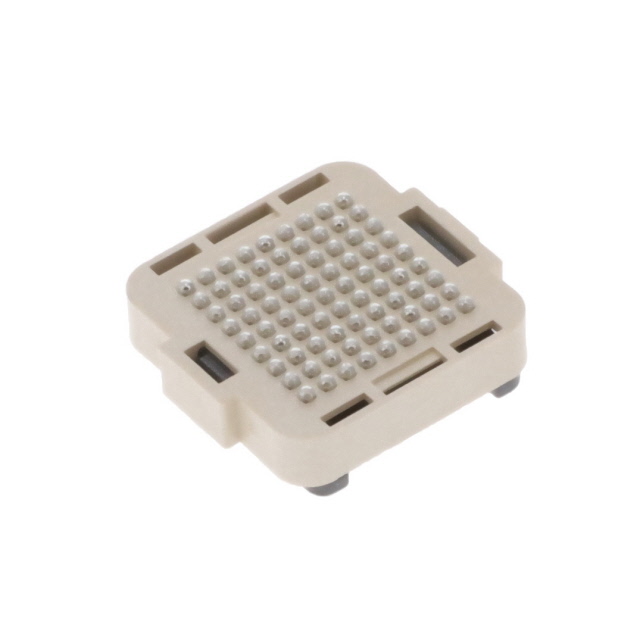

Arrays, Edge Type, Mezzanine (Board To Board) 55715-101LF product image

55715-101LF

$28.04

Description：CONN ARRAY RCPT 81POS SMD GOLD
Series：MEG-Array®, MezzSelect™
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:fae98e854fe7 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

55715-101LF is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN ARRAY RCPT 81POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 55715-101LF

Description：CONN ARRAY RCPT 81POS SMD GOLD
Series：MEG-Array®, MezzSelect™
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Array, Female Sockets
Number of Positions：81
Pitch：0.050" (1.27mm)
Number of Rows：9
Mounting Type：Surface Mount
Features：-
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Mated Stacking Heights：4mm
Height Above Board：0.132" (3.35mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 55715-101LF

55715-101LF
