Product Detailed Parameters
- Description：LINE FILTER 440VAC 55A CHASS MNT
- Series：KEH-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：55 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

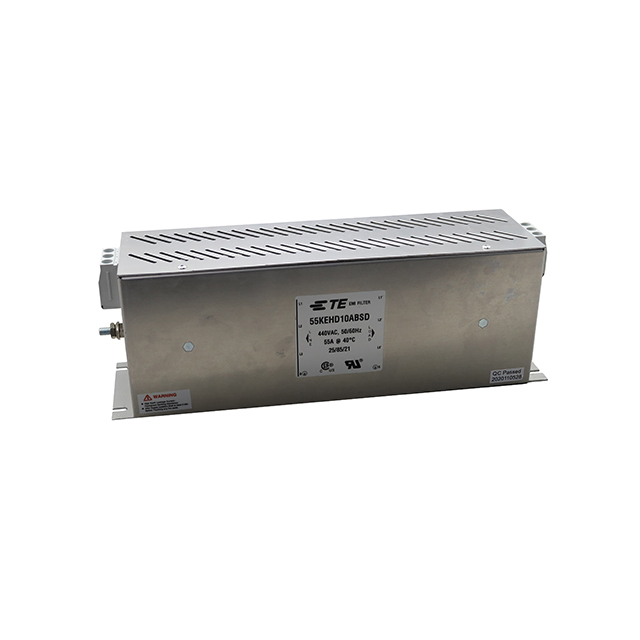

The 55KEHD10ABSD is a three-phase power line filter manufactured by TE Connectivity Corcom. It features a Delta configuration with a voltage rating of 440 VAC and a current capacity of 55 A. Designed for chassis mounting via screw terminals, the unit operates at 50 Hz or 60 Hz frequencies. Key electrical specifications include a leakage current of 15 mA. The physical dimensions are 280 mm in length, 85 mm in width, and 105 mm in height. It supports an operating temperature range from -25°C to +85°C and holds UL and CSA compliance certifications.
Feature Summary
- Provides electromagnetic interference suppression for three-phase delta systems
- Utilizes a two-stage filtering architecture for enhanced noise reduction
- Supports secure chassis installation using screw terminal connections
Applications
- Industrial machinery power conditioning
- Three-phase motor drive protection
- Commercial power distribution systems
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to end-of-life status. Confirm specific datasheet revisions and RoHS/REACH compliance documentation prior to integration. Ensure mechanical fitment matches the specified chassis mount dimensions and terminal spacing requirements for the target application environment.
Selection Notes
Select this model when a 55 A continuous current rating and 440 VAC operation are required for three-phase delta circuits. Consider the chassis mount style and screw terminal interface for panel integration. Evaluate the thermal management needs against the specified operating temperature range and leakage current limits for sensitive equipment applications.
Part Context
This component belongs to the KEH-BS series of power line filters from TE Connectivity Corcom. The series is designed for robust industrial environments requiring reliable EMI/EMC performance. The part number alias 2-1609969-4 identifies this specific configuration within the manufacturer's catalog structure.
Replacement Considerations
The manufacturer indicates this product is approaching end-of-life status. Verify availability of direct substitutes or updated series replacements through official TE Connectivity resources before finalizing procurement plans.
