Product Detailed Parameters
- Description：LINE FILTER 520VAC 55A CHASS MNT
- Series：KEH-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：55 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

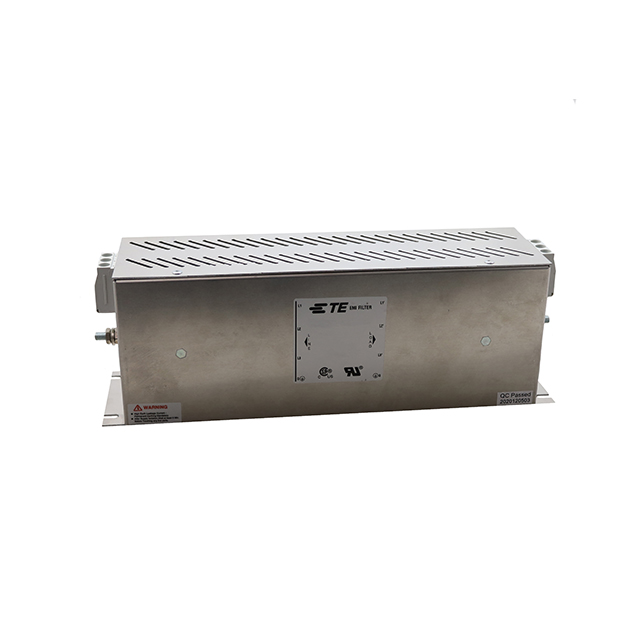

The 55KEHD10BBSD is a three-phase power line filter manufactured by TE Connectivity Corcom Filters. Designed for chassis mounting, this component supports a current rating of 55 A and operates at frequencies of 50 Hz or 60 Hz. It features a two-stage filtering configuration to effectively suppress electromagnetic interference. The unit utilizes terminal block connections for secure electrical interfacing and is rated for an AC voltage of 520 V.
Feature Summary
- Three-phase delta configuration for industrial power applications
- Two-stage filtering architecture for enhanced noise suppression
- Chassis mount design with terminal block termination
Applications
- Industrial machinery power conditioning
- Electromagnetic compatibility (EMC) systems
- Three-phase equipment noise filtration
Procurement Notes
Verify the specific suffix against official manufacturer documentation to confirm exact ratings and certifications. Confirm chassis mounting requirements and terminal block specifications prior to integration. Ensure environmental conditions align with operational limits defined in the datasheet.
Selection Notes
Select this model for applications requiring robust three-phase EMI/RFI suppression. Evaluate the 55 A current capacity and 520 VAC rating against system demands. Consider the chassis mount style and terminal block interface for physical integration constraints.
Part Context
This component belongs to the KEH-BS series of power line filters from TE Connectivity Corcom Filters. The series is engineered for high-current industrial environments, providing reliable noise reduction for sensitive electronic loads connected to three-phase power sources.
Replacement Considerations
Cross-reference part number 55KEHD10ABSD as a potential alternative within the same product family. Verify that voltage and current ratings match specific application requirements before substitution.
