Product Detailed Parameters
- Description：LINE FILTER 440VAC 55A CHASS MNT
- Series：KEP-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：55 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

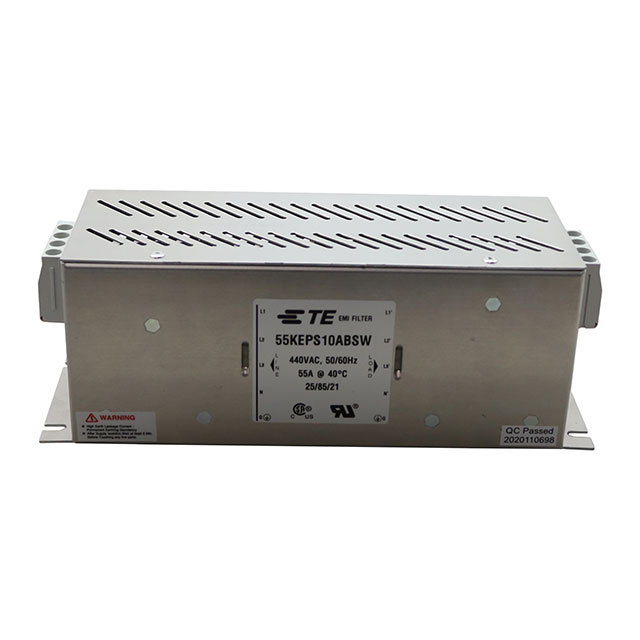

The TE Connectivity Corcom Filters 55KEPS10ABSW is a three-phase superior performance EMI filter designed for chassis mounting. It operates at a rated voltage of 440 VAC and supports a current rating of 55 A at frequencies of 50 Hz and 60 Hz. The component features quick connect and screw termination types with a leakage current of 8 mA. It complies with UL and CSA standards and functions within an operating temperature range of -25°C to +85°C.
Feature Summary
- Provides superior performance electromagnetic interference filtering for three-phase power lines
- Designed for secure chassis mounting using quick connect and screw termination methods
- Complies with UL and CSA safety certification requirements
Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- Commercial building electrical infrastructure
Procurement Notes
Verify the specific manufacturer part number against official TE Connectivity documentation before procurement. Confirm that the required termination style matches the available quick connect and screw options. Ensure the application environment remains within the specified -25°C to +85°C operating temperature limits. Check for any updated compliance certifications relevant to the target market.
Selection Notes
Select this component when a three-phase superior performance EMI filter is required for 440 VAC systems. Ensure the load current does not exceed the 55 A rating. Verify that chassis mounting space accommodates the physical dimensions. Confirm compatibility with existing terminal block or screw connection hardware in the design.
Part Context
This component belongs to the KEP series of power line filters manufactured by TE Connectivity under the Corcom brand. The series focuses on high-performance electromagnetic interference suppression for industrial applications. The model designation indicates specific electrical ratings and termination configurations within the broader product family.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official TE Connectivity documentation for potential cross-references or updated series replacements.
