Product Detailed Parameters
- Description：LINE FILTER 520VAC 55A CHASS MNT
- Series：KEP-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：55 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

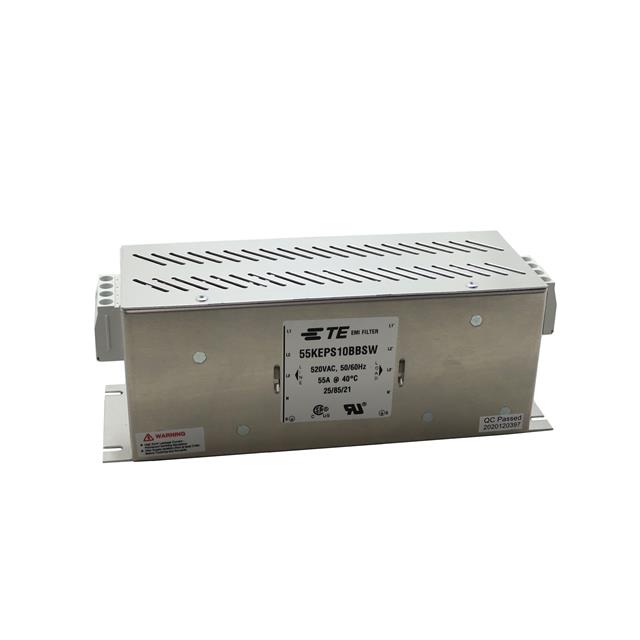

The 55KEPS10BBSW is a three-phase superior performance EMI filter from the KEP-BS series by TE Connectivity Corcom. It supports a voltage rating of 520 VAC and a current rating of 55 A at 50/60 Hz. Designed for chassis mounting, it features a flanged configuration with quick connect terminals. The unit operates within a temperature range of -25°C to +85°C and includes UL and CSA compliance certifications.
Feature Summary
- Three-phase superior performance EMI filtering
- Chassis mount with flanged design
- Quick connect terminal interface
Applications
- Industrial power conditioning systems
- Electromagnetic compatibility (EMC) protection
- RFI suppression in three-phase equipment
Procurement Notes
Verify the specific suffix 'BS' against official datasheets to confirm physical dimensions and terminal type. Confirm RoHS status and REACH SVHC details directly from the manufacturer documentation before integration. Ensure the chassis mounting requirements align with the flanged design specifications provided in the technical drawings.
Selection Notes
Select this component for applications requiring high-current three-phase filtering up to 55 A. The 520 VAC rating suits standard industrial power distributions. Consider the chassis mount style and quick connect terminals for assembly constraints. Verify thermal management capabilities within the specified operating temperature range.
Part Context
This part belongs to the KEP-BS series of power line filters manufactured by TE Connectivity Corcom. The series is designed for superior EMI/RFI attenuation in industrial environments. The model number indicates its phase configuration, current capacity, and mounting style within the broader product family.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternatives. Generic cross-references may not match the specific electrical or mechanical parameters required for this chassis-mounted application.
