55KEVD10ABSW

Overview

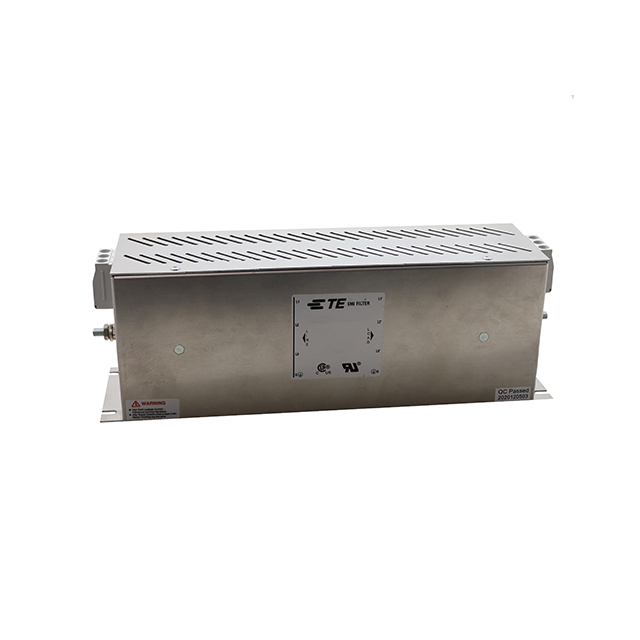

The 55KEVD10ABSW is a three-phase high-performance EMI filter manufactured by TE Connectivity Corcom. Designed for chassis mounting, this component supports a rated voltage of 440 VAC and handles a continuous current of 55 A at operating frequencies of 50 Hz and 60 Hz. It features a two-stage configuration with quick connect and screw termination options. The unit exhibits a leakage current of 11 mA and complies with UL and CSA standards. Physical dimensions include a height of 230 mm.

Feature Summary

• Three-phase Wye topology for industrial power line noise suppression
• Two-stage filtering architecture for enhanced attenuation performance
• Chassis mount design with mixed termination capabilities

Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• Commercial power distribution units

Procurement Notes

Verify the specific manufacturing date code and lot traceability upon receipt to ensure compliance with project requirements. Confirm that the physical condition matches the datasheet specifications, particularly regarding terminal integrity and housing durability. Cross-reference the part number against official TE Connectivity archives to confirm current lifecycle status and availability constraints before finalizing procurement plans.

Selection Notes

Select this model when a three-phase solution is required for 440 VAC systems drawing up to 55 A. Ensure the application environment accommodates the specified chassis mounting style and physical footprint. Verify that the termination types align with existing wiring infrastructure. Consider thermal management requirements given the current rating and enclosed nature of the filter assembly.

Part Context

This component belongs to the KEV series of power line filters from TE Connectivity Corcom. The series specializes in high-current three-phase applications requiring robust EMI/RFI suppression. The KEV series typically offers various configurations to meet diverse industrial electromagnetic compatibility standards and installation constraints.

Replacement Considerations

Consult official TE Connectivity documentation for direct cross-references or updated series replacements. Verify electrical equivalence and mechanical fit if substituting with other three-phase filters. Ensure any alternative maintains the same voltage and current ratings.
