Product Detailed Parameters
- Description：LINE FILTER 520VAC 55A CHASS MNT
- Series：KEV-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：55 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

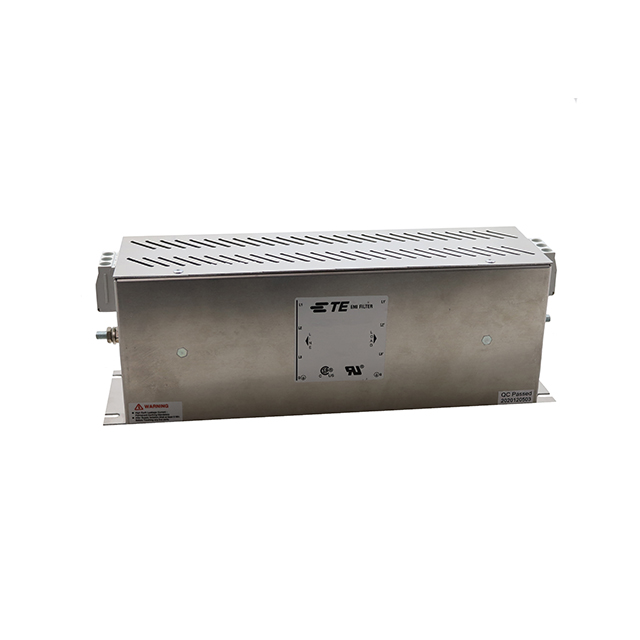

The 55KEVD10BBSW is a three-phase power line filter from the KEV-BS series manufactured by TE Connectivity Corcom. It is rated for 55 A current and 520 VAC voltage at 50/60 Hz operating frequencies. The unit features a two-stage EMC/EMI filtering configuration with chassis mount installation and flanged design. Electrical specifications include a maximum leakage current of 15 mA. Physical dimensions are 310 mm in length, with screw terminal connections for secure wiring.
Feature Summary
- Provides two-stage electromagnetic interference suppression for three-phase systems
- Features a robust flanged chassis mount design for stable installation
- Utilizes screw terminals for reliable electrical connectivity
Applications
- Industrial machinery power conditioning
- Three-phase motor drive protection
- Commercial building infrastructure power distribution
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential counterfeit risks. Confirm specific lot codes and RoHS compliance status prior to procurement. Ensure storage conditions maintain integrity given the component's electronic nature. Review datasheet revisions for any recent parameter updates before finalizing orders.
Selection Notes
Select this model when high current capacity and three-phase filtering are required. The 55 A rating suits heavy industrial loads. Verify physical space constraints against the 310 mm length dimension. Ensure the mounting environment supports chassis installation methods. Confirm voltage compatibility with the 520 VAC system requirement.
Part Context
This component belongs to the KEV-BS series of power line filters designed for demanding industrial environments. The series emphasizes durability and effective noise reduction for sensitive equipment. TE Connectivity Corcom manufactures these units to meet stringent international safety standards including UL and CSA certifications.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult official TE Connectivity resources for cross-reference information or contact technical support directly for compatible alternatives.
