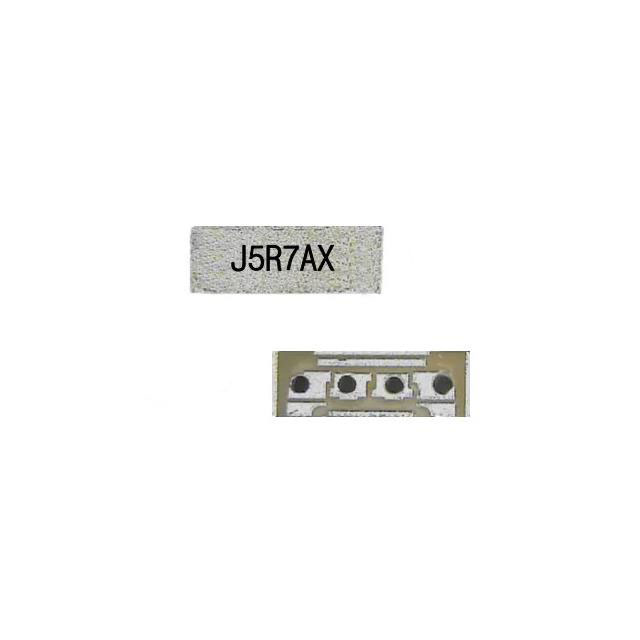

5697CR45A0360001U

$1.15

Description：RF FILTER BAND PASS 5.67GHZ 5SMD
Series：-
Mfr：Johanson Technology Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4967ba8be04d Category: RF Filters Brand: Johanson Technology Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND PASS 5.67GHZ 5SMD
Series：-
Mfr：Johanson Technology Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Frequency：5.67GHz
Bandwidth：360MHz
Filter Type：Band Pass
Ripple：1.3dB
Insertion Loss：2.5dB
Mounting Type：Surface Mount
Package / Case：5-SMD, No Lead
Size / Dimension：0.337" L x 0.152" W (8.56mm x 3.85mm)
Height (Max)：0.124" (3.15mm)

Download product information

5697CR45A0360001U

Overview

The 5697CR45A0360001U is a surface-mount bandpass filter manufactured by Johanson Technology, designed for UNII-High band applications. It operates at a center frequency of 5.67 GHz with a bandwidth of 360 MHz, covering the range from 5.49 GHz to 5.85 GHz. The component features an insertion loss of 2.5 dB and utilizes SMD/SMT termination in a 3415 (8633 metric) package. It supports board mounting and functions within a temperature range of -40°C to +100°C.

Feature Summary

High rejection performance optimized for UNII-High band signal conditioning
Ag/Pt electrode construction for enhanced reliability
Compact 3415 surface-mount footprint for space-constrained designs

Applications

UNII-High band wireless LAN systems
5 GHz Wi-Fi communication devices
RF front-end signal filtering modules

Procurement Notes

Verify the complete part number suffix against official Johanson Technology documentation to ensure correct packaging and material specifications. Confirm RoHS compliance status and moisture sensitivity level requirements prior to integration into production workflows. Cross-reference distributor listings with manufacturer datasheets to validate authenticity and current availability status.

Selection Notes

Select this component when high rejection characteristics are required for the 5.49-5.85 GHz spectrum. The 3415 package size offers a balance between electrical performance and PCB real estate efficiency. Ensure the design accommodates the specified thermal operating range and insertion loss parameters for optimal system signal integrity.

Part Context

This device belongs to the BP series of bandpass filters from Johanson Technology. It is engineered specifically for high-frequency signal conditioning tasks where precise frequency selection and out-of-band rejection are critical. The component serves as a passive RF filter solution for modern wireless infrastructure.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative components through direct electrical parameter comparison and mechanical footprint analysis before substitution.
