57102-F10-03LF

Headers, Male Pins Overview

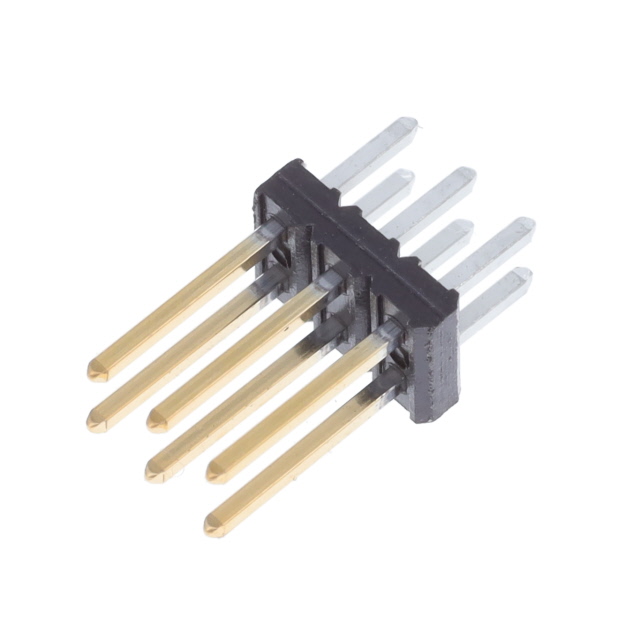

The Amphenol ICC (FCI) 57102-F10-03LF is a Minitek series header connector designed for board-to-board and wire-to-board applications. It features a 6-position, double-row configuration with a 2 mm pitch. The contacts are gold-plated phosphor bronze pins rated for 2 A at 200 V AC/DC. Constructed with black thermoplastic insulation, it supports through-hole straight mounting. Operating temperatures range from -55°C to +125°C, with an insulation resistance of 1 GOhm.

Headers, Male Pins Feature Summary

• Double-row unshrouded header design for compact circuit integration
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Thermoplastic housing provides thermal stability and electrical insulation

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic equipment assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'F10' against official Amphenol documentation to confirm contact plating thickness and material specifications. Ensure the ordering part number matches the required row spacing and pin count. Cross-reference datasheet revision dates to validate current environmental compliance status before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, double-row header is required for 2 mm pitch systems. Confirm that the 2 A current rating and 200 V voltage limit align with circuit requirements. Verify that the through-hole mounting style and straight orientation fit the PCB layout constraints.

Headers, Male Pins Part Context

This part belongs to the Minitek family, a line of connectors known for cost-effective solutions in data communication and industrial applications. The 57102 series specifically addresses needs for reliable, high-density connections in space-constrained environments, offering robust performance under standard operating conditions.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Amphenol FCI engineering resources for potential cross-references or updated series replacements.
