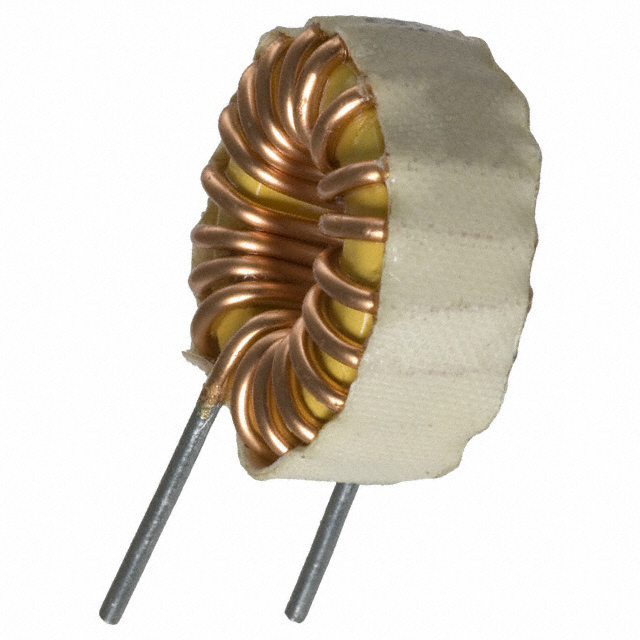

5717-RC is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is FIXED IND 500UH 4A 150 MOHM TH. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for 5717-RC
- Description：FIXED IND 500UH 4A 150 MOHM TH
- Series：5700
- Mfr：Bourns Inc.
- Package：Bulk
- Type：Toroidal
- Material - Core：Iron Powder
- Inductance：500 µH
- Tolerance：±15%
- Current Rating (Amps)：4:00 AM
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：150mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 105°C
- Inductance Frequency - Test：1 kHz
- Mounting Type：Through Hole
- Package / Case：Radial, Vertical (Open)
- Supplier Device Package：-
- Size / Dimension：1.812" Dia x 0.750" W (46.02mm x 19.05mm)
- Height - Seated (Max)：-
- Features：-
Fixed Inductors datasheet and documents for 5717-RC
Fixed Inductors Overview
The Bourns 5717-RC is a through-hole power inductor with a nominal inductance of 500 µH and a tolerance of ±15%. It features an unshielded design and supports a maximum DC current rating of 4 A. The component exhibits a maximum DC resistance of 150 mΩ. It operates within a temperature range of -55°C to +105°C.
Fixed Inductors Feature Summary
- Unshielded construction for high-current applications
- Through-hole mounting configuration
- Wide operating temperature range
Fixed Inductors Applications
- Power supply filtering
- Choke applications in industrial electronics
- General-purpose signal conditioning circuits
Fixed Inductors Procurement Notes
Verify the specific ordering suffix against manufacturer documentation to confirm exact electrical tolerances and packaging specifications. Ensure that the selected variant meets the required thermal management standards for the intended operational environment. Cross-reference terminal pitch dimensions with PCB layout requirements prior to procurement.
Fixed Inductors Selection Notes
Select this component based on its 4 A current handling capability and 500 µH inductance value. Consider the unshielded nature when designing layouts to minimize electromagnetic interference coupling. Verify that the 150 mΩ DC resistance aligns with system efficiency targets and thermal dissipation constraints.
Fixed Inductors Part Context
This part belongs to Bourns' fixed inductor portfolio, designed for robust performance in power electronics. It utilizes leaded technology suitable for automated or manual insertion processes. The series emphasizes reliability in demanding environments, supporting various industrial and commercial power conversion architectures.
Fixed Inductors Replacement Considerations
Consult official substitution lists for compatible alternatives. Verify that any substitute matches the 500 µH inductance, 4 A current rating, and 150 mΩ resistance specifications. Ensure mechanical compatibility regarding terminal pitch and package dimensions.
