58102-S61-08LF

Headers, Male Pins Overview

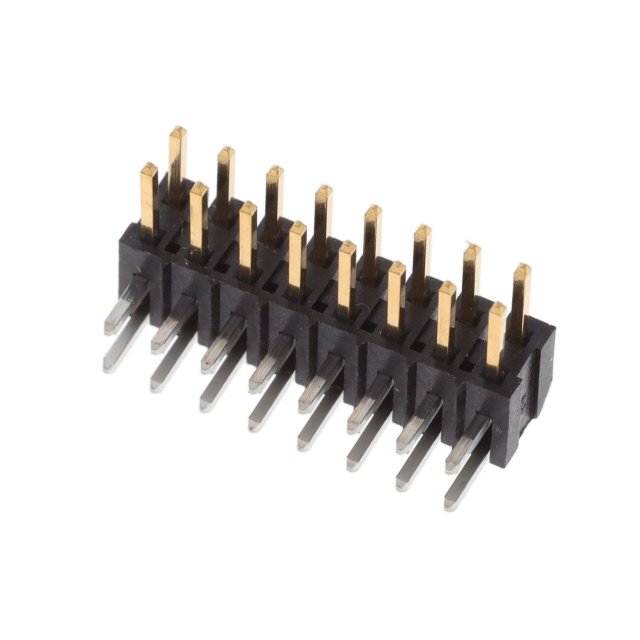

The Amphenol ICC (FCI) 58102-S61-08LF is a Minitek series header component designed for wire-to-board interconnections. It features an unshrouded pin strip configuration with two rows and eight positions, utilizing a 2.00 mm pitch. The connector employs right-angle through-hole termination with solder pins for secure PCB mounting. Constructed with a black thermoplastic housing and copper alloy contacts, it supports a maximum current rating of 3 A. The design includes a mating post length of 4 mm and a termination post length of 2.5 mm, ensuring reliable engagement within the specified operating temperature range.

Headers, Male Pins Feature Summary

• Unshrouded dual-row pin strip architecture for compact board integration
• Right-angle through-hole solder termination for stable mechanical fixation
• Gold-plated copper alloy contacts to ensure consistent signal conductivity
• Thermoplastic housing engineered for thermal stability and durability

Headers, Male Pins Applications

• Wire-to-board connections in consumer electronics assemblies
• Signal routing in industrial control systems
• Interfacing components within data processing equipment
• General-purpose electrical connections in communication devices

Headers, Male Pins Procurement Notes

Verify that the ordering suffix matches the required contact plating and housing material specifications. Confirm the pin count aligns with the target circuit design before procurement. Ensure compatibility with mating wire harnesses or female headers regarding pitch and row spacing. Check RoHS compliance status if environmental regulations apply to the final assembly. Validate the right-angle orientation against the available board space constraints.

Headers, Male Pins Selection Notes

Select this component when a low-profile, cost-effective solution for multiple signal lines is required. The 2.00 mm pitch allows for dense packing compared to larger spacing standards. The unshrouded design facilitates easier visual inspection of solder joints but requires careful alignment during assembly. Consider the right-angle form factor to optimize vertical clearance on the printed circuit board.

Headers, Male Pins Part Context

This part belongs to the Minitek family of connectors produced by Amphenol ICC (formerly FCI). The Minitek line focuses on providing economical and reliable interconnect solutions for various electronic applications. Components in this series are characterized by their standardized dimensions and robust performance in general-purpose environments, serving as a staple for basic wiring needs across multiple industries.
