5943000201

Overview

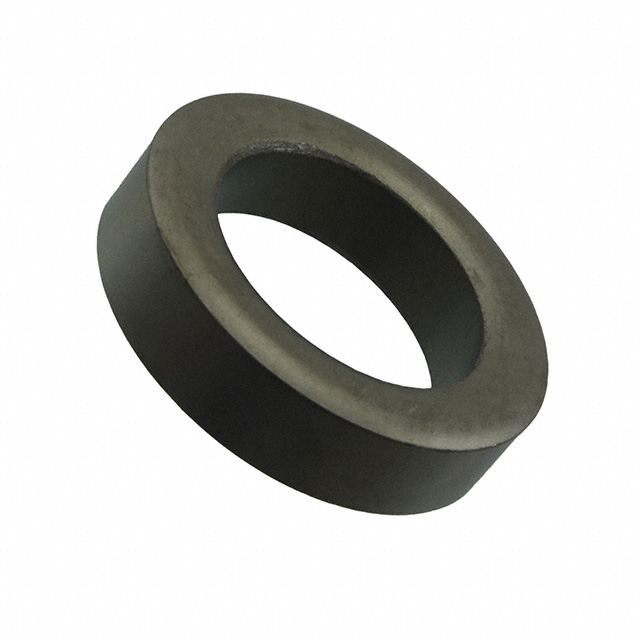

Fair-Rite Products Corp. part number 5943000201 is a ferrite ring toroid core constructed from Material 43, designed for broadband transformer applications. The component features an outer diameter of 0.374 inches (9.5 mm), an inner diameter of 0.187 inches (4.75 mm), and a length of 0.125 inches (3.3 mm). It operates within the frequency range of 25 to 300 MHz and complies with RoHS standards.

Feature Summary

• Constructed from Material 43 suitable for broadband transformer applications
• Compact toroidal geometry optimized for high-frequency signal integrity

Applications

• Broadband transformer construction
• High-frequency circuit filtering
• Signal integrity enhancement in RF designs

Procurement Notes

Verify the specific Material 43 composition and dimensional tolerances against the official Fair-Rite datasheet prior to integration. Confirm RoHS compliance status and ensure the supplier provides valid traceability documentation for this electronic component.

Selection Notes

Select this component when designing broadband transformers requiring Material 43 characteristics within the 25-300 MHz spectrum. Ensure the physical dimensions align with the winding form factor and that the application does not exceed the material's thermal or saturation limits.

Part Context

This ferrite ring belongs to the Fair-Rite toroidal core family, specifically utilizing Material 43 for its magnetic properties. It serves as a passive electromagnetic component essential for managing noise and impedance in radio frequency and broadband circuits.

Replacement Considerations

Substitute only with identical Fair-Rite 5943000201 units or verified equivalents matching Material 43 specifications and exact dimensions (OD 9.5mm, ID 4.75mm, Length 3.3mm) to maintain circuit performance.
