5943000211

Overview

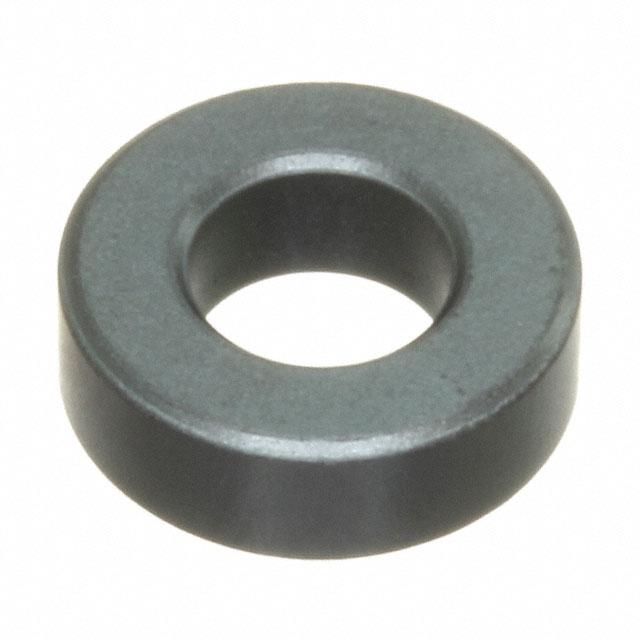

Fair-Rite Products Corp. part number 5943000211 is a solid free-hanging ferrite core belonging to the 59 series, manufactured using Material 43. It features an inside diameter of 4.56 mm (0.180 inches), an outside diameter of 9.74 mm (0.383 inches), and a length of 3.34 mm (0.131 inches). The component is designed for cable ferrite applications and is supplied in bulk packaging.

Feature Summary

• Constructed from Fair-Rite Material 43 for effective high-frequency noise suppression
• Solid design suitable for free-hanging installation on cables
• Compact dimensions optimized for tight spatial constraints

Applications

• Cable ferrite noise suppression
• High-frequency interference filtering
• Electromagnetic compatibility enhancement

Procurement Notes

Verify the specific Material 43 designation and physical dimensions against official Fair-Rite documentation before procurement. Confirm that the bulk packaging format aligns with assembly requirements. Ensure the component meets all relevant environmental compliance standards required for the intended application.

Selection Notes

Select this component when Material 43 properties are required for the target frequency range. The solid free-hanging form factor allows for easy installation on existing cables without complex mounting hardware. Verify that the internal diameter accommodates the cable size effectively.

Part Context

This component is part of Fair-Rite's extensive line of ferrite cores, specifically within the 59 series toroids and rings category. Material 43 is widely recognized for its permeability characteristics in the MHz range, making it a standard choice for general-purpose EMI suppression in electronic assemblies.

Replacement Considerations

Substitute only with parts explicitly confirmed as equivalent by Fair-Rite or verified through official cross-reference data. Generic equivalents may differ in material composition or impedance characteristics.
