5943000911

Overview

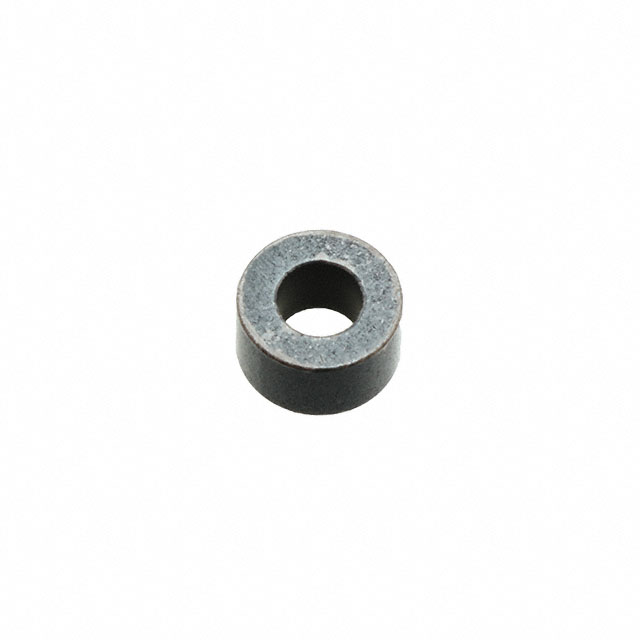

Fair-Rite 5943000911 is a solid cylindrical ferrite core utilizing Material 43. It features an inner diameter of 2.91 mm, an outer diameter of 5.99 mm, and a length of 3.19 mm. The component is available in a Parylene coated variant for enhanced environmental protection. Designed for free-hanging installation, it serves as a cable ferrite for electromagnetic interference suppression.

Feature Summary

• Solid cylindrical geometry suitable for free-hanging cable applications
• Material 43 composition optimized for high-frequency noise absorption
• Parylene coating provides environmental protection and durability

Applications

• Electromagnetic interference suppression on cables
• High-frequency noise filtering in electronic assemblies
• Cable ferrite implementation for signal integrity

Procurement Notes

Verify the specific material grade and coating status when ordering. Confirm that the Parylene coated version matches the required environmental specifications. Ensure the physical dimensions align with the target cable diameter for proper fitment during assembly.

Selection Notes

Select this component based on the requirement for Material 43 characteristics at high frequencies. The small inner diameter restricts usage to thin cables or wires. Consider the Parylene coating if exposure to moisture or chemicals is anticipated in the operational environment.

Part Context

This part belongs to Fair-Rite's family of ferrite cores and rings. It utilizes Material 43, which is widely recognized for its effectiveness in suppressing common mode noise in the higher frequency range. The cylindrical shape allows for easy integration into various cable management systems.

Replacement Considerations

Substitute only with components sharing identical Material 43 properties and compatible physical dimensions. Verify that any alternative offers equivalent impedance characteristics and Parylene coating if environmental resistance is required.
