5943004901

Overview

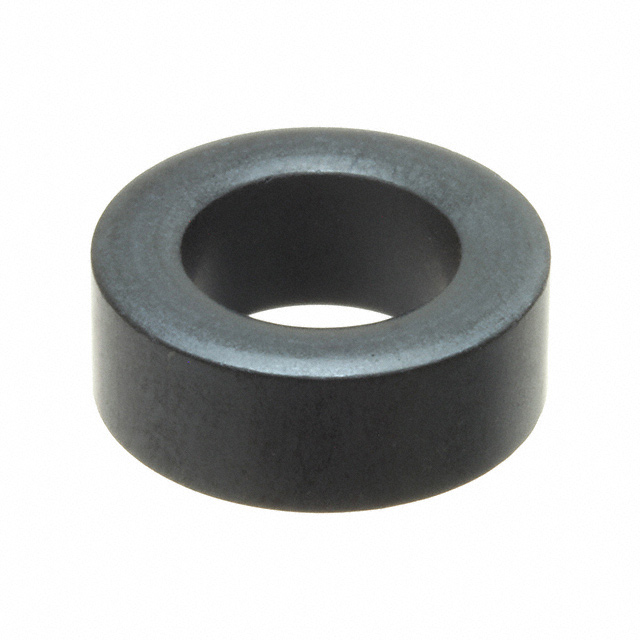

Fair-Rite Products Corp. part number 5943004901 is a solid ferrite toroid core constructed from Material 43. It features an inner diameter of 9.60 mm (0.378 inches), an outer diameter of 16.00 mm (0.630 inches), and a length of 6.35 mm (0.250 inches). The component is designed for free-hanging installation and is classified as a cable ferrite filter. It complies with RoHS 3 standards.

Feature Summary

• Solid construction without split design
• Material 43 composition for high permeability
• Free-hanging mounting configuration

Applications

• Inductive component fabrication
• Cable ferrite filtering
• Electromagnetic interference suppression

Procurement Notes

Verify the specific Material 43 designation and physical dimensions against official Fair-Rite datasheets before integration. Confirm RoHS 3 compliance status matches current regulatory requirements. Ensure the solid toroid geometry fits the intended assembly constraints. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Selection Notes

Select this component when Material 43 properties are required for low-frequency inductance or noise suppression applications. The solid ring design suits applications where split cores are unsuitable. Verify that the 9.60 mm inner diameter accommodates the target conductor or winding bundle size. Consider the free-hanging nature for mechanical stability during operation.

Part Context

This component belongs to the Fair-Rite 59 series of ferrite rings. It utilizes Material 43, which is optimized for applications requiring high initial permeability. The solid toroidal shape provides continuous magnetic path characteristics compared to split alternatives. It serves as a passive element for signal integrity management.

Replacement Considerations

Consult Fair-Rite documentation for direct substitutes within the 59 series or other Material 43 toroids. Verify dimensional compatibility if replacing with parts from different manufacturers. Ensure electrical characteristics match the original design intent.
