5967000601

Overview

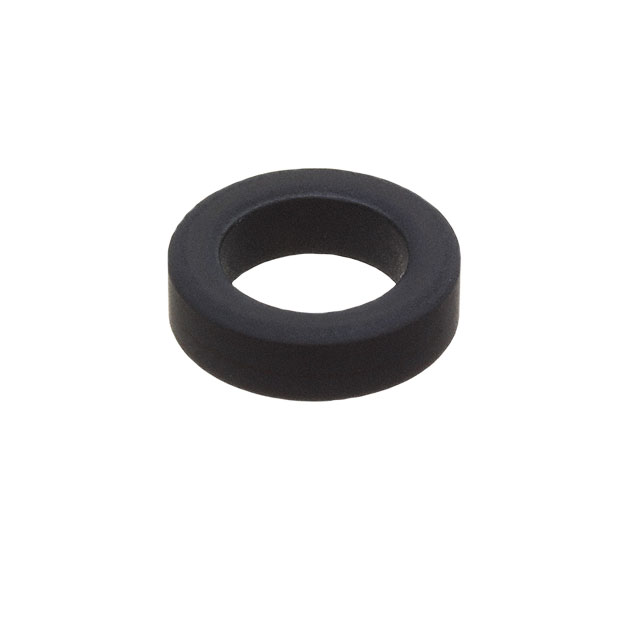

Fair-Rite Products Corp. part number 5967000601 is a solid, free-hanging ferrite core designed for cable filtering applications. It utilizes Material 67, which provides high magnetic permeability suitable for suppressing electromagnetic interference in the lower frequency range. The component features a circular geometry with an inner diameter of 0.519 inches (13.20 mm), an outer diameter of 0.827 inches (21.00 mm), and a length of 0.250 inches (6.35 mm). This specific configuration allows for easy installation over cables without requiring specialized mounting hardware.

Feature Summary

• Utilizes Material 67 composition for effective low-frequency noise suppression
• Solid construction ensures consistent magnetic properties and durability
• Free-hanging design facilitates straightforward installation on cables

Applications

• Electromagnetic interference suppression on power and signal cables
• Common mode noise reduction in electronic equipment wiring
• Cable filtering in industrial control systems

Procurement Notes

Verify the material designation is indeed Material 67 when sourcing replacements, as Fair-Rite offers multiple compositions with distinct frequency characteristics. Confirm physical dimensions match the required cable clearance, specifically the 13.20 mm inner diameter. Check RoHS compliance status if environmental regulations apply to your assembly process. Ensure the supplier provides official datasheets to validate performance specifications against original requirements.

Selection Notes

Select this component when targeting noise frequencies typically associated with Material 67 characteristics. Consider the inner diameter constraint to ensure compatibility with existing cable bundles. Evaluate whether the solid form factor meets mechanical stability needs compared to split-core alternatives. Compare impedance profiles at target frequencies against other Fair-Rite materials like 43 or 31 to ensure optimal attenuation for the specific application spectrum.

Part Context

This ferrite core belongs to Fair-Rite's standard line of cable accessories used for EMI mitigation. It complements other solid cores in the series by offering a balance of permeability and saturation characteristics defined by Material 67. These components are widely used in conjunction with connectors and harnesses to maintain signal integrity in noisy environments.

Replacement Considerations

Direct substitutes include other Fair-Rite cores using Material 67 with identical or compatible dimensions. Verify that any alternative maintains the same inner diameter of 13.20 mm to fit the target cable. Cross-reference external diameters and lengths to ensure spatial constraints are met in the final assembly.
