5968001101

Overview

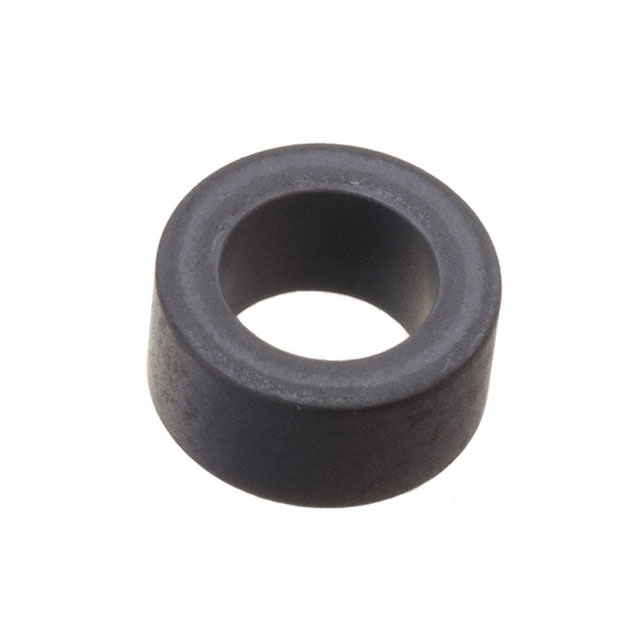

Fair-Rite 5968001101 is a solid, free-hanging ferrite core designed for electromagnetic interference suppression. It utilizes Material 68 and features a toroidal geometry with an inner diameter of 7.90mm (0.311 inches), an outer diameter of 12.70mm (0.500 inches), and a length of 6.35mm (0.250 inches). The component is classified as a cable ferrite intended for clamping around conductors to attenuate high-frequency noise.

Feature Summary

• Solid construction provides structural integrity for direct cable clamping without split halves
• Material 68 composition offers specific magnetic permeability characteristics for targeted frequency attenuation
• Free-hanging design allows for easy installation onto existing wiring harnesses

Applications

• Electromagnetic interference suppression in power supply circuits
• Noise reduction in battery charger assemblies
• Signal integrity enhancement in portable electronic devices

Procurement Notes

Verify the Material 68 designation matches the required impedance profile for the target application frequency range. Confirm that the 7.90mm inner diameter accommodates the specific cable or wire bundle gauge being treated. Ensure compliance with RoHS directives if required by the end-product specifications.

Selection Notes

Select this component when a solid, non-split toroid is preferred over clamshell types for permanent installations. Material 68 is suitable for applications requiring specific high-frequency loss characteristics distinct from other Fair-Rite materials. Ensure the physical dimensions fit within the available spatial constraints of the device enclosure.

Part Context

This part belongs to the Fair-Rite 59 series of ferrite cores, which are widely used in EMI filtering. The 5968001101 specifically denotes a standard size toroid made from Material 68. It is distinct from split cores or beads, offering a continuous magnetic path for effective common-mode noise suppression on cables.
