5973605607F

Overview

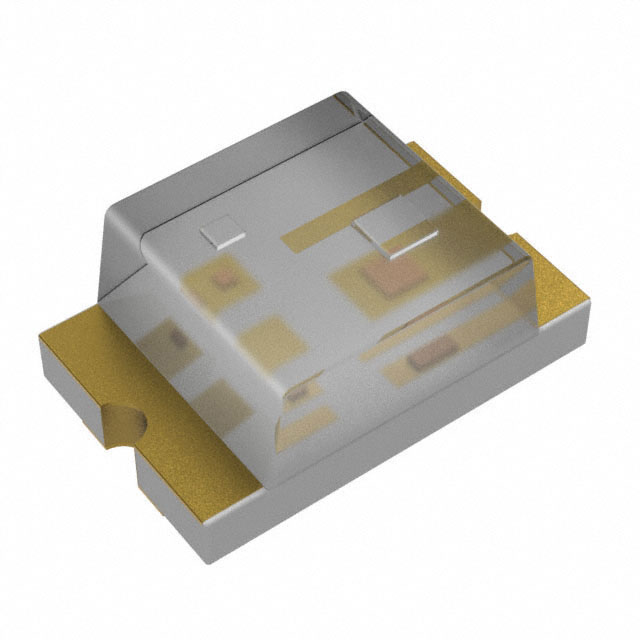

The Dialight 5973605607F is a single-color blue surface-mount LED from the 597 series. It features a rectangular lens with a flat top and operates at a peak wavelength of 468nm. The component has a typical forward voltage of 2.8V and a luminous intensity of 15mcd. It utilizes an 0805 (2012 metric) package measuring 2.00mm in length, 1.25mm in width, and a maximum height of 1.10mm. The device supports a viewing angle of 130° and is tested at 2mA.

Feature Summary

• Provides high-visibility blue indication through a rectangular, flat-top lens design.
• Engineered for standard surface-mount assembly processes on printed circuit boards.
• Delivers consistent optical performance with a wide 130-degree viewing angle.

Applications

• Electronic equipment status indicators
• Control panel signal lights
• Consumer appliance front panels

Procurement Notes

Verify current availability as this specific part number is listed as obsolete. Confirm that alternative sourcing channels can supply genuine units or approved equivalents. Ensure compliance with RoHS3 standards and check moisture sensitivity level classifications before procurement to maintain storage integrity.

Selection Notes

Select this component when a compact blue indicator is required for space-constrained designs. The 0805 footprint offers a balance between visibility and board real estate. Consider the 2.8V forward voltage drop for power budget calculations and ensure the driving circuitry accommodates the specified test current conditions.

Part Context

This component belongs to the Dialight 597 series of MicroLEDs, designed for general-purpose indication. The series emphasizes reliability and standardized packaging for automated manufacturing. The 5973605607F specifically addresses applications requiring a distinct blue signal within a small form factor constraint.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation due to the obsolete status of this specific model. Evaluate other blue LEDs in the 597 series or compatible 0805 packages from the manufacturer for functional equivalence.
