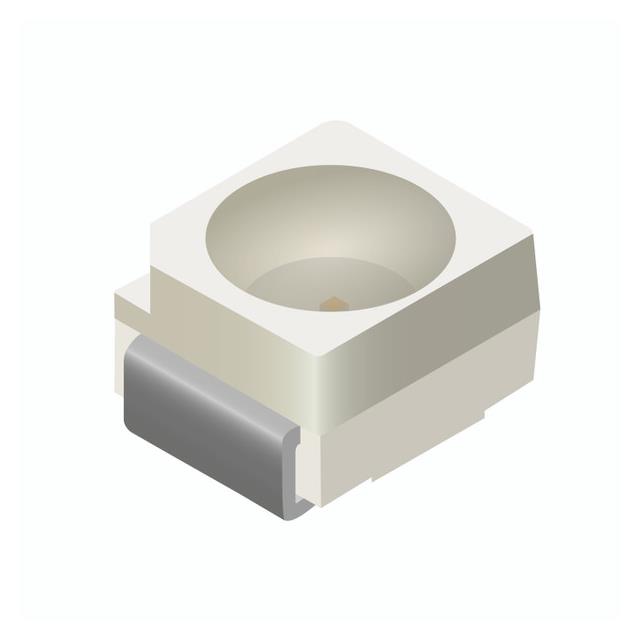

5973901407F

Description：SM PLCC-2 WHITE 10MA 7" REEL
Series：597
Mfr：Dialight
Package：Tape & Reel (TR)

SKU:87f46537afe1 Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SM PLCC-2 WHITE 10MA 7" REEL
Series：597
Mfr：Dialight
Package：Tape & Reel (TR)
Color：White
Configuration：Independent
Lens Color：-
Lens Transparency：-
Millicandela Rating：135mcd
Lens Style：Round with Flat Top
Lens Size：2.29mm Dia
Voltage - Forward (Vf) (Typ)：3.1V
Current - Test：10mA
Viewing Angle：131°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：2-PLCC
Supplier Device Package：2-PLCC
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：2.15mm
Grade：-
Qualification：-

Download product information

5973901407F

Overview

The Dialight 5973901407F is a single-color surface-mount LED emitting red light with a peak wavelength of 647 nm. It utilizes a 1208 (3020 metric) package measuring 3.00 mm in length, 2.00 mm in width, and a maximum height of 1.30 mm. The component features a clear lens with a rectangular shape and flat top design. Electrical characteristics include a typical forward voltage of 3.2 V at a test current of 20 mA. The device offers a viewing angle of 110 degrees and a luminous intensity of 900 mcd. It operates within a temperature range of -40°C to +85°C and holds an MSL rating of 3.
