Product Detailed Parameters
- Description：LED COOL WHITE CLEAR 1208 SMD
- Series：597
- Mfr：Dialight
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：White
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：900mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：2.30mm x 1.60mm
- Voltage - Forward (Vf) (Typ)：3.2V
- Current - Test：20mA
- Viewing Angle：110°
- Mounting Type：Surface Mount
- Wavelength - Dominant：-
- Wavelength - Peak：-
- Features：-
- Package / Case：1208 (3020 Metric)
- Supplier Device Package：1208
- Size / Dimension：3.00mm L x 2.00mm W
- Height (Max)：1.30mm
- Grade：-
- Qualification：-
Download product information
Overview

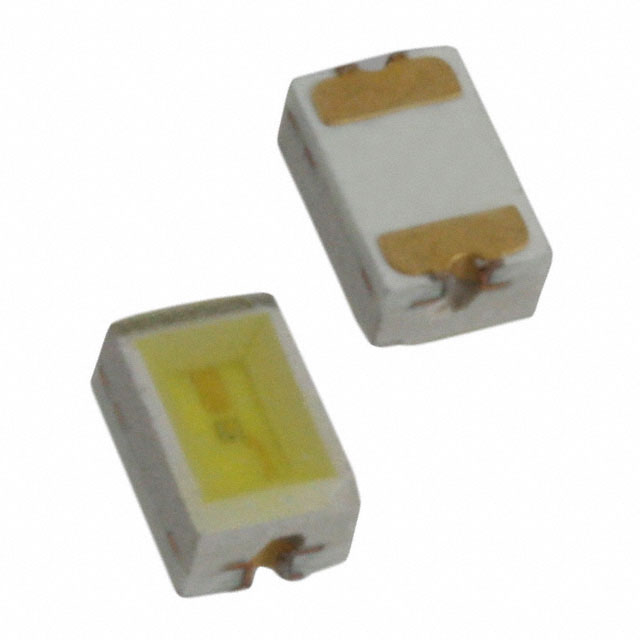

Dialight 5973902507F is a cool white surface-mount LED indicator in the 597 series. It utilizes a 1208 (3020 metric) package with dimensions of 3.00mm length, 2.00mm width, and a maximum height of 1.30mm. The component features a clear rectangular lens with a flat top and offers a viewing angle of 110 degrees. Electrical characteristics include a typical forward voltage of 3.2V at a test current of 20mA. The device emits light with an intensity of 900mcd and complies with RoHS3 standards.
Feature Summary
- Surface-mount construction designed for automated assembly processes
- Clear rectangular lens geometry providing a wide 110-degree viewing angle
- Cool white emission profile suitable for general status indication
Applications
- Electronic equipment panel indicators
- Power supply status signaling
- Consumer appliance control interfaces
Procurement Notes
Verify the specific suffix against official manufacturer documentation to confirm exact optical and electrical tolerances. Confirm RoHS3 compliance status directly with the supplier prior to integration. Ensure handling procedures account for Moisture Sensitivity Level 3 requirements during storage and reflow soldering processes.
Selection Notes
Select this component when a compact 1208 footprint is required for high-intensity white indication. The 3.2V forward voltage aligns with standard logic-level driving circuits. Verify that the 110-degree beam angle meets visibility requirements for the intended enclosure design.
Part Context
The 5973902507F belongs to Dialight's 597 series of surface-mount LEDs. This series provides various color options and package sizes for industrial and commercial applications. The part represents a standard configuration within the product line, focusing on reliability and consistent photometric performance.
Replacement Considerations
Consult official manufacturer substitution guides for equivalent components. Verify pinout compatibility and thermal management requirements before integrating alternative sources.
