5973904307F

Overview

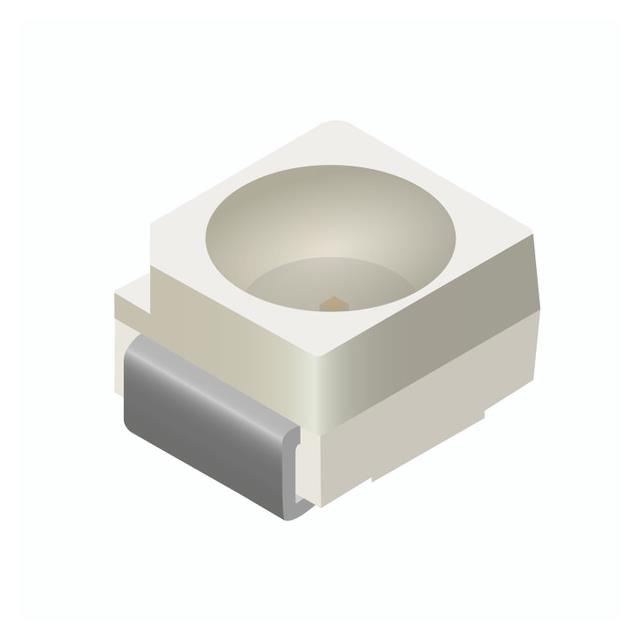

The Dialight 5973904307F is a single-color white surface-mount LED in a 2-PLCC package. It operates at a forward voltage of 3.9 V and emits light with a peak wavelength of 465 nm. The component has a maximum power rating of 70 mW and a viewing angle of 152 degrees. It functions within a temperature range of -30°C to +85°C and is moisture sensitive.

Feature Summary

• Emits cool white light from a compact SMD footprint
• Features a rectangular water-clear lens for non-diffused output
• Designed for standard PCB mounting via the 2-PLCC package

Applications

• Board status indication
• General electronic equipment signaling
• Consumer device front panels

Procurement Notes

Verify RoHS compliance status and lead times directly with authorized distributors, as this part number may be subject to end-of-life restrictions or discontinuation by the manufacturer. Confirm current availability through official supply channels before finalizing procurement plans.

Selection Notes

Select this component for applications requiring a low-profile white indicator light. Ensure circuit design accommodates the 3.9 V forward voltage drop and 20 mA typical forward current requirements while respecting the 70 mW power dissipation limit.

Part Context

This part belongs to the Dialight MicroLED series, which provides various single-color options in standard surface-mount packages. The 5973904307F specifically utilizes the 2-PLCC form factor common in modern electronics manufacturing for space-constrained designs.

Replacement Considerations

Consult official Dialight documentation for verified substitute part numbers. No public substitutes are confirmed in available data.
