5975316507F

Overview

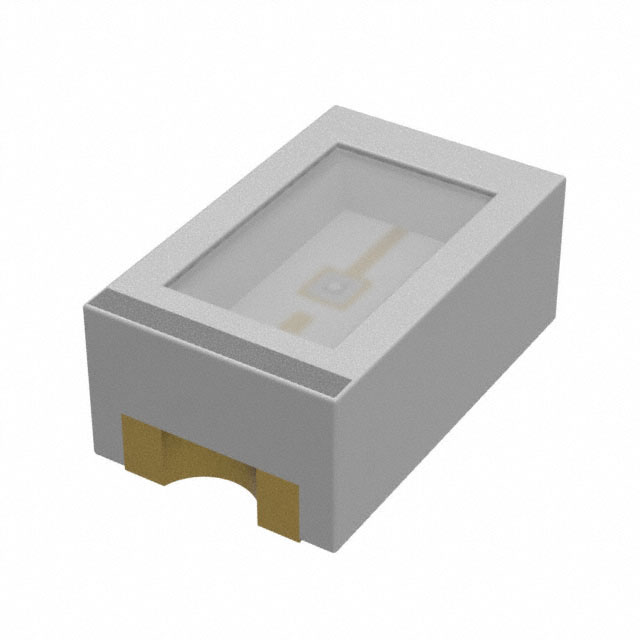

Dialight 5975316507F is a discontinued surface-mount indicator LED in the 597 series. It emits green light at a dominant wavelength of 560nm with a typical forward voltage of 2.2V tested at 20mA. The component utilizes an 0805 (2012 metric) package measuring 2.00mm x 1.25mm x 0.93mm max. It features a rectangular lens with a flat top and achieves an intensity of 16mcd. The device complies with RoHS3 standards, carries MSL rating 3, and is classified under ECCN EAR99.

Feature Summary

• Standard configuration for discrete surface-mount indication
• Rectangular lens design with a flat top profile
• Compliant with RoHS3 environmental specifications

Applications

• Electronic equipment status indication
• Panel-mounted visual signaling
• Discrete circuit monitoring

Procurement Notes

This component has been officially declared obsolete by Dialight. Procurement is restricted to remaining distributor stock or secondary market sources. Verify manufacturing dates carefully as availability is finite. Confirm RoHS3 compliance and MSL handling requirements upon receipt. No new production units are available from the manufacturer.

Selection Notes

Select this part only if the specific 560nm green emission and 0805 footprint are mandatory. Note that it is a standard configuration unit. Consider alternative colors or intensities within the same series if optical requirements differ. Verify compatibility with existing PCB land patterns designed for the 2012 metric package dimensions.

Part Context

The 5975316507F belongs to Dialight's 597 series of surface-mount LEDs. This series provides various color and package options for general-purpose indication. The 0805 form factor balances visibility with space constraints on printed circuit boards. It represents a standard discrete component solution for visual feedback in electronic assemblies.

Replacement Considerations

No public confirmed substitute part numbers are documented for this specific model.
