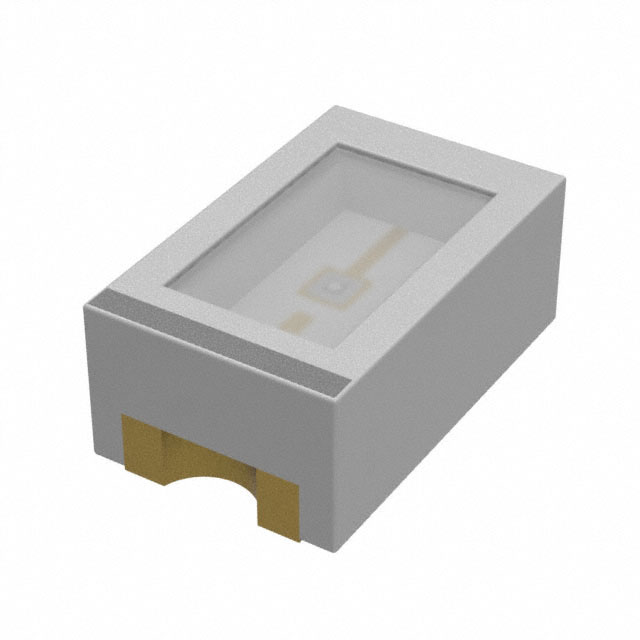

5975326507F

$0.54

Description：LED GREEN 0805 SMD
Series：597
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e60e57d6a6b0 Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED GREEN 0805 SMD
Series：597
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Standard
Lens Color：-
Lens Transparency：-
Millicandela Rating：140mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.40mm x 1.24mm
Voltage - Forward (Vf) (Typ)：3V
Current - Test：5mA
Viewing Angle：-
Mounting Type：Surface Mount
Wavelength - Dominant：527nm
Wavelength - Peak：-
Features：-
Package / Case：0805 (2012 Metric)
Supplier Device Package：805
Size / Dimension：2.00mm L x 1.25mm W
Height (Max)：0.93mm
Grade：-
Qualification：-

Download product information

5975326507F

Overview

Dialight 5975326507F is a discontinued green surface-mount LED indicator in the 597 series. It features a 0805 (2012 metric) package with dimensions of 2.00mm length, 1.25mm width, and a maximum height of 0.93mm. The component emits light at a dominant wavelength of 527nm with a typical forward voltage of 3V at a test current of 5mA. It offers an intensity of 140mcd and a viewing angle of 135 degrees. The lens is rectangular with a flat top and clear transparency. It complies with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 3.

Feature Summary

Green light emission with a dominant wavelength of 527nm
Standard configuration in a compact 0805 surface-mount package
Rectangular lens style with clear, flat-top design

Applications

Electronic equipment status indication
Panel-mounted device signaling
General-purpose visual indicators

Procurement Notes

This component is officially discontinued by Dialight and will not be restocked after inventory depletion. Verification of final stock availability through authorized distributors is essential before integration into designs. Engineers should review the Product Change Notification for obsolescence details and transition timelines to ensure supply chain stability for existing production runs.

Selection Notes

Designers requiring this specific green SMD LED must account for its discontinued status when planning long-term manufacturing. Alternative components within the 597 series or other manufacturers should be evaluated for pin compatibility and electrical characteristics. Verify that the 0805 footprint and 3V forward voltage align with the target circuit constraints to ensure seamless replacement without board redesign.

Part Context

The 5975326507F belongs to Dialight's 597 series of surface-mount LEDs, known for providing reliable visual feedback in compact electronic assemblies. This specific part represents a standard green indicator optimized for space-constrained applications where high visibility and low profile are required. Its discontinuation reflects product lifecycle management within the broader family of discrete optoelectronic components.
