5975406507F

Overview

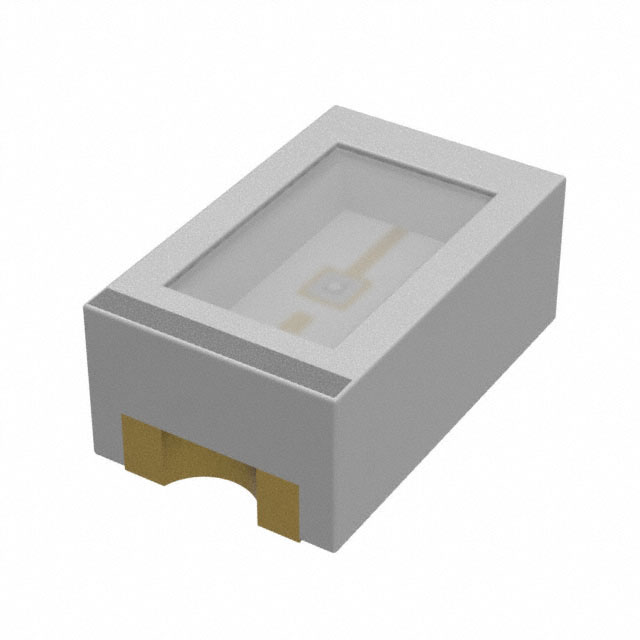

Dialight 5975406507F is a yellow surface-mount LED indicator in an 0805 (2012 metric) package. It emits at a primary wavelength of 590nm with a typical forward voltage of 2V and a test current of 20mA. The component features a rectangular lens with a flat top, measuring 1.40mm x 1.24mm, and provides a light intensity of 160mcd. Physical dimensions are 2.00mm long by 1.25mm wide, with a maximum height of 0.93mm. It complies with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 3.

Feature Summary

• Standard configuration single-color yellow emission for discrete indication
• Rectangular lens design with a flat top profile
• Surface mount construction suitable for automated assembly

Applications

• Discrete electronic status indication
• Panel-mounted equipment signaling
• General-purpose visual alerts

Procurement Notes

Verify the obsolete status indicated by the Product Change Notice dated December 9, 2025. Confirm that alternative sourcing or substitute components are available before finalizing designs. Ensure compliance with RoHS3 requirements and MSL 3 handling procedures during storage and manufacturing processes.

Selection Notes

Select this component for applications requiring a standard yellow indicator in an 0805 footprint. Consider the 160mcd intensity and 2V forward voltage when designing drive circuits. Verify spatial constraints against the 0.93mm maximum height specification to ensure compatibility with the target enclosure or PCB layout.

Part Context

This part belongs to the Dialight 597 series of surface mount LEDs. The series offers various colors and packages for general indication purposes. The 5975406507F specifically utilizes the 0805 form factor, which is widely used in compact consumer and industrial electronics for reliable visual feedback.

Replacement Considerations

No public confirmed substitute part numbers are documented for this specific component.
