5975506507F

Overview

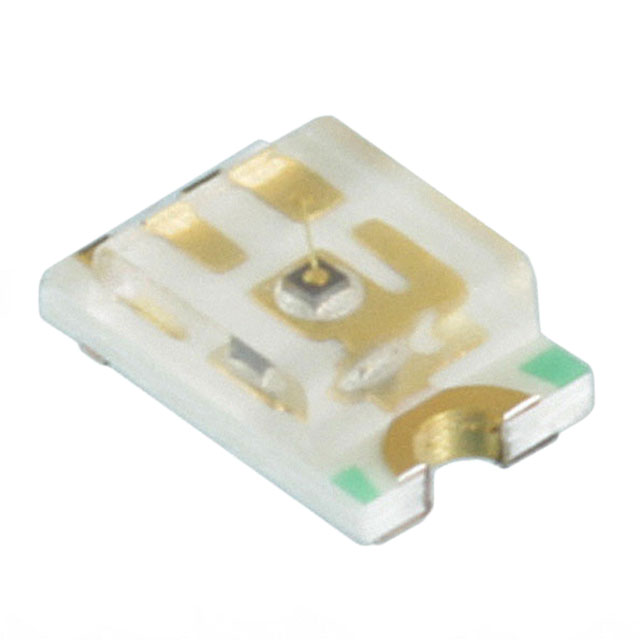

The Dialight 5975506507F is a yellow-green surface-mount LED indicator in an 0805 (2012 metric) package. It emits at a primary wavelength of 572nm with a typical forward voltage of 2.2V and a test current of 20mA. The component features a rectangular lens with a flat top, measuring 1.40mm x 1.24mm. Physical dimensions are 2.00mm length, 1.25mm width, and a maximum height of 0.93mm. It provides a light intensity of 45mcd. The device complies with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 3.

Feature Summary

• Surface mount configuration for automated assembly processes
• Rectangular lens design with a flat top profile
• Yellow-green emission color optimized for visibility

Applications

• Electronic equipment status indication
• Panel-mounted instrument signaling
• Consumer appliance operational feedback

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm the obsolete status and end-of-life notifications prior to procurement planning. Ensure storage conditions adhere to the specified MSL 3 requirements to prevent moisture damage during handling and soldering processes.

Selection Notes

Select this component when a standard 0805 footprint is required for yellow-green indication. Consider the specific forward voltage and luminous intensity requirements against circuit constraints. Evaluate the rectangular lens style for optical directionality needs compared to diffused alternatives within the same series.

Part Context

This part belongs to the Dialight 597 series of surface-mount LEDs. It represents a standard configuration within the company's discrete indicator lineup, designed for general-purpose electronic applications requiring reliable visual signaling in compact form factors.

Replacement Considerations

No public confirmed substitute part numbers are available for this discontinued component.
