5975606507F

Overview

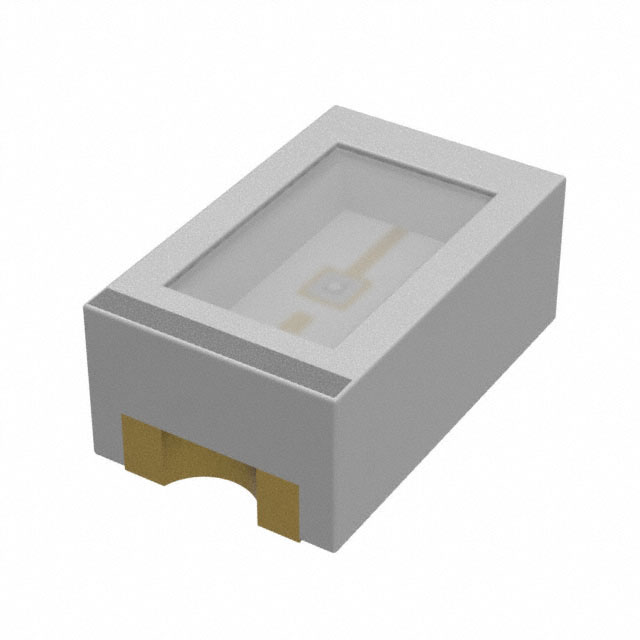

The Dialight 5975606507F is a blue surface-mount LED in the 597 series, housed in an 0805 (2012 metric) package. It emits light at a peak wavelength of 470nm with a typical forward voltage of 2.9V. The component features a rectangular lens with a flat top and measures 2.00mm in length by 1.25mm in width. It has a maximum height of 0.93mm and provides an optical intensity of 36mcd when tested at 5mA. This device is classified as obsolete.

Feature Summary

• Blue emission at 470nm wavelength
• Standard 0805 surface-mount footprint
• Rectangular non-diffused lens design

Applications

Procurement Notes

This component is officially marked as obsolete by the manufacturer. Availability is restricted to remaining stock only, with no further production planned. Verify end-of-life status and lead times carefully before finalizing designs. Sourcing may be limited to surplus distributors.

Selection Notes

Engineers should consider this part for legacy maintenance or specific historical replacements where the 0805 form factor is required. Due to its obsolete status, alternative components with similar electrical characteristics and pinout compatibility should be evaluated for new designs to ensure long-term supply stability.

Part Context

Part of the Dialight 597 series of surface-mount LEDs. This series offers various colors in compact packages suitable for panel indicators and general illumination. The 5975606507F specifically addresses blue light requirements within the standard 0805 dimension constraints.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
