5975906507F

Overview

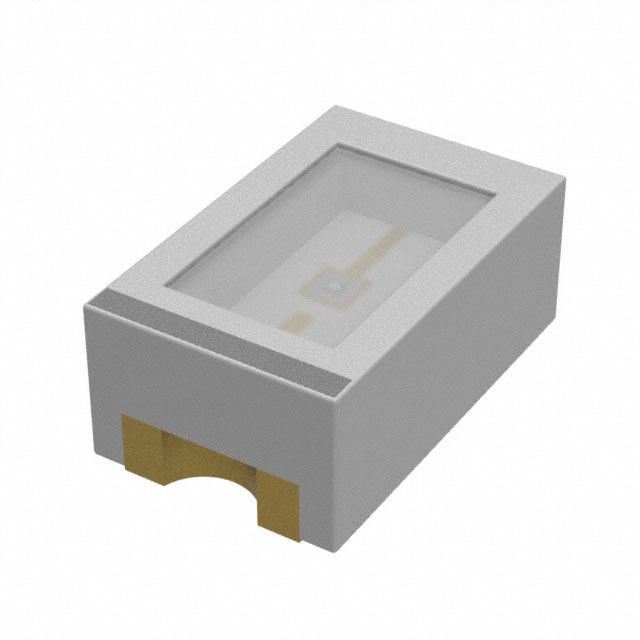

The Dialight 5975906507F is a white surface-mount LED in an 0805 (2012 metric) package. It features a rectangular lens with a flat top and non-diffused transparency. Key electrical parameters include a forward voltage of 2.9V at a test current of 5mA, producing 140 mcd luminous intensity. The component measures 2.00mm in length, 1.25mm in width, and has a maximum height of 0.93mm. It complies with RoHS3 standards and carries an MSL rating of 3.

Feature Summary

• White light emission within a compact 0805 SMD footprint
• Rectangular lens design with flat top geometry
• Low profile construction suitable for space-constrained PCBs

Applications

• General electronic equipment status indication
• Panel indicator lighting
• Consumer device signal illumination

Procurement Notes

This component is officially obsolete and no longer manufactured by Dialight. Availability is limited to existing stock from distributors. Verify part authenticity through authorized channels and confirm RoHS3 compliance documentation before procurement. Due to end-of-life status, lead times are unpredictable and supply continuity cannot be guaranteed.

Selection Notes

Engineers should identify equivalent replacements immediately due to obsolescence. Consider components with matching 0805 dimensions, similar forward voltage characteristics, and compatible luminous intensity. Ensure the substitute supports required moisture sensitivity levels and maintains identical thermal resistance properties for reliable circuit integration.

Part Context

Part of the Dialight 597 series of single-color surface-mount LEDs. This series offers various color options including red, yellow, green, blue, and white. The 597 series utilizes standard SMD packaging formats designed for automated assembly processes in high-volume electronics manufacturing environments.

Replacement Considerations

SMLMN2WB1CW1 by Rohm Semiconductor is documented as a parameter-equivalent substitute.
