5CEBA2F23C8N

Overview

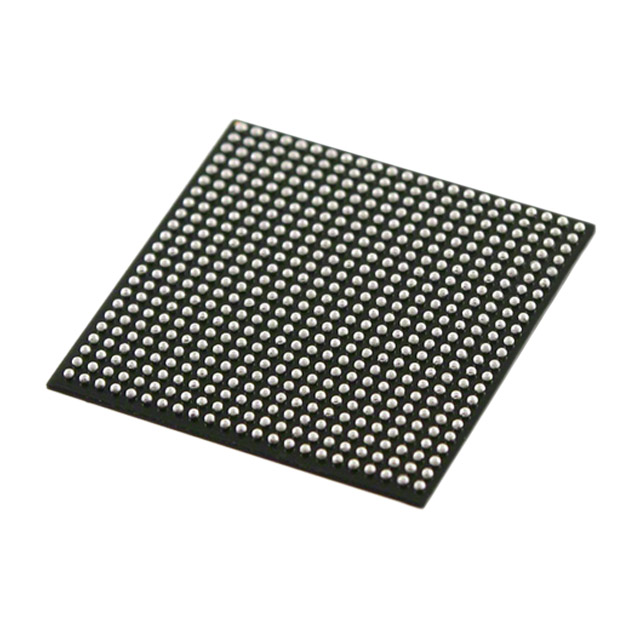

The Altera 5CEBA2F23C8N is a Cyclone V E series Field Programmable Gate Array (FPGA) designed for cost-sensitive and power-efficient applications. It features 77,000 logic elements and 29,080 Adaptive Logic Modules (ALMs). The device integrates 4.88 Mbit of embedded memory and supports up to 240 user I/Os. Operating at a supply voltage range of 1.07V to 1.13V, it is housed in a 484-ball FBGA package measuring 23x23 mm. The component operates within a junction temperature range of 0°C to 85°C.

Feature Summary

• Integrates high-density programmable logic with significant embedded memory capacity for complex data processing tasks.
• Optimized for low system cost and reduced power consumption compared to previous generation devices.
• Supports extensive parallel I/O connectivity suitable for diverse interface requirements.

Applications

• Industrial automation control systems
• Consumer electronics interface bridges
• Telecommunications infrastructure components

Procurement Notes

Verify the specific ordering suffix against official Intel/Altera documentation to ensure correct package type and temperature grade. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer prior to placement. Ensure design files match the exact part number variant to avoid compatibility issues during fabrication.

Selection Notes

Select this model when designs require moderate logic density combined with substantial on-chip memory resources. Compare against other Cyclone V E variants based on specific I/O count needs and pinout compatibility. Evaluate total system power budgets against the device's operational voltage specifications to ensure thermal management aligns with enclosure constraints.

Part Context

This component belongs to the Cyclone V E family, which targets economy and efficiency markets. It serves as a scalable solution within the broader Altera portfolio, bridging the gap between lower-end CPLDs and higher-performance Stratix or Arria devices. The E-series designation indicates a focus on optimized performance-per-watt and cost-efficiency.

Replacement Considerations

Direct functional replacements within the same package and pinout are limited within the E-series. Consider upgrading to Cyclone V GT or GX variants if high-speed transceivers are required, though pinouts may differ. Verify cross-compatibility with newer Cyclone 10 LP devices for future-proofing, noting architectural differences.
