5CEBA4U19C7N

Overview

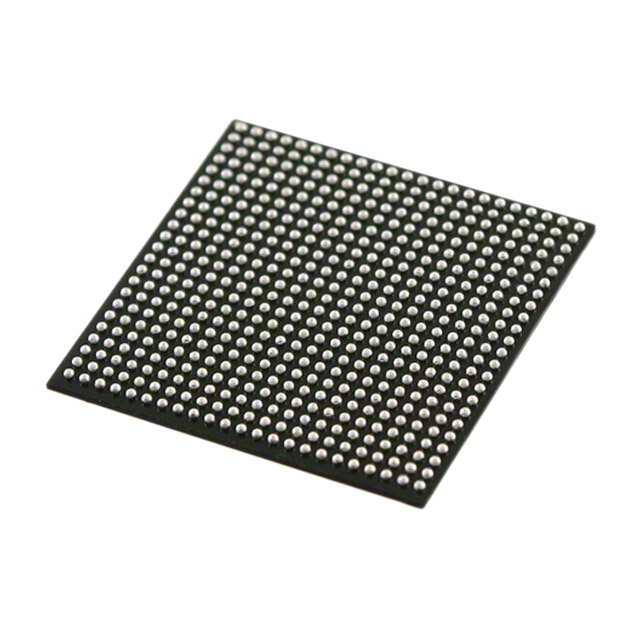

The Altera 5CEBA4U19C7N is a Cyclone V E series Field Programmable Gate Array (FPGA) designed for cost-sensitive applications. It features 49,000 logic elements and 18,480 Adaptive Logic Modules (ALMs). The device integrates 3,464,192 total bits of embedded memory. It provides 176 user I/Os and operates within a supply voltage range of 1.07V to 1.13V. The component is housed in a 324-UBGA package with dimensions of 15x15 mm and supports surface mount installation. It functions reliably across an operating temperature range of 0°C to 85°C.

Feature Summary

• Integrates significant embedded memory capacity suitable for data buffering and storage within the programmable fabric.
• Utilizes Adaptive Logic Modules to provide efficient resource utilization for complex digital logic designs.
• Supports standard surface mount technology for integration into printed circuit boards.

Applications

• Industrial control systems requiring moderate logic density
• Consumer electronics interface bridging
• Communication protocol conversion

Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure correct package type and temperature rating. Confirm RoHS compliance status through current datasheets or product change notices. Cross-reference the full part number with authorized distributors to avoid counterfeit components. Ensure design files match the exact variant specifications before procurement.

Selection Notes

Select this model when the design requires approximately 49,000 logic elements and substantial embedded memory without high-speed serial transceivers. Compare performance metrics against other Cyclone V E variants to ensure optimal cost-to-performance ratio. Verify that the 324-ball package fits the available board space and thermal constraints. Check compatibility with existing development tools and programming hardware.

Part Context

This component belongs to the Intel (formerly Altera) Cyclone V E family, which targets low-power and cost-optimized FPGA applications. Unlike the GX or GT series, the E series focuses on general-purpose logic and embedded memory rather than high-speed SerDes capabilities. It serves as a scalable solution for mid-range programmable logic needs.

Replacement Considerations

Direct pin-compatible replacements within the same package may include other 5CEBA4 variants with different speed grades or temperature ranges. Verify functional equivalence by comparing logic element counts and memory sizes. Consult official substitution guides for any recommended upgrades or legacy cross-references.
